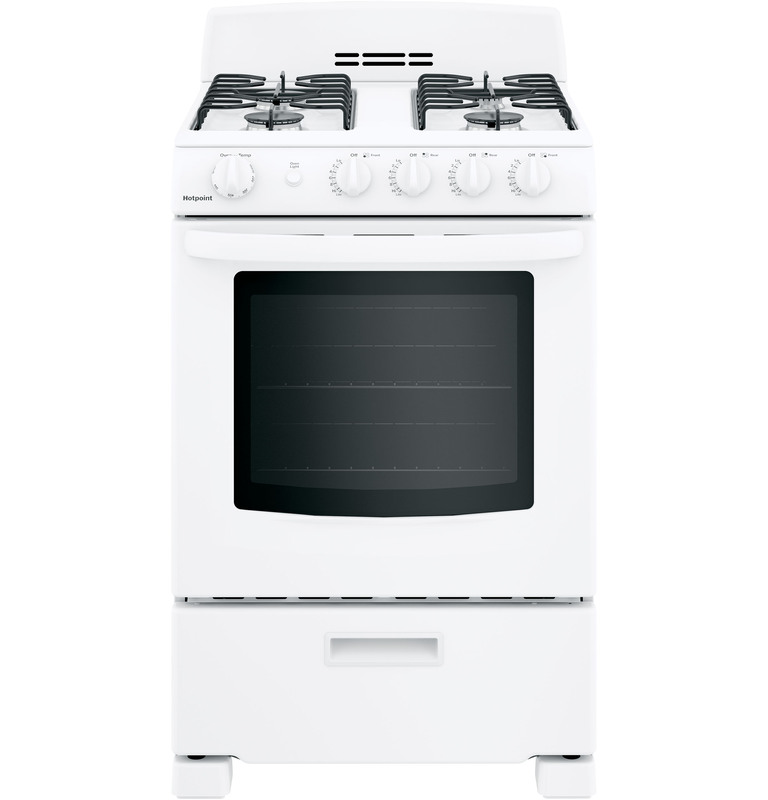

Hotpoint® RGAS300DMWW 24" Front-Control Free-Standing Gas Range with Large Window

Features
- Front controls
Easily operate your range stove without reaching over hot pots and pans - Electronic pilotless ignition
Say farewell to the energy-wasting standing pilot! The electric pilotless ignition provides reliable operation. - Porcelain oven door
Scratch-resistant porcelain coating makes the door more durable and easy to maintain - Sealed cooktop burners
Contains spills and make cleaning quick and easy - Two oven racks and multiple rack positions
Easily accommodate large cookware with two sturdy racks that can be placed in several positions
CAPACITY
| Total Capacity (cubic feet) | 2.90 |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU |
| Oven Interior | 1 Incandescent Light Blue Gray |
| Broiler Drawer | Yes |
| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Standard Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Porcelainized Wire |
| Fuel Type | Natural Gas |
| Interior Oven Light | Yes |
| Control Location | Front |
| Control Type | Electro-Mechanical |
| Burner - Left Front | 9,500 BTU |
| Drawer Type | Broiler Drawer |
| Sabbath Mode | Yes |
| Leveling System | 4 Leveling Legs |
| Cooking Technology | Traditional |
| Configuration | Range with Broiler Drawer |
| OU Certified | No |
| Oven Cooking Modes | Bake Broil |
| Cooktop Burner Type | Sealed |
| Valves (Degree of Turn) | 140 |
| Burner - Right Front | 12,000 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 4 |
APPEARANCE
| Oven Door Features | Oven Window |
| Handle Color | White |
| Control Knobs | White |
| Door Swing | Pull-Down |
| Color Appearance | White |
WEIGHTS & DIMENSIONS
| Net Weight | 89 |
| Depth Without Handle | 24.625 |
| Height to Cooking Surface (in.) | 36 3/4 |
| Cabinet Width | 24.000000 |
| Approximate Shipping Weight | 102 |
| Overall Width | 23 3/4 |
| Overall Height | 41 7/8 |
| Overall Depth | 26 5/8 |
| Depth with Door Open | 44.375 |
| Oven Interior Dimensions (W x H x D) (in.) | 19 x 15-3/8 x 17-1/8 |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 13.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 13.0 |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CERTIFICATIONS
| Claims & Certifications | ADA Compliant CSA California Prop 65 View Chemical Content Reports |
Range
- BrandHotpoint
- Fuel TypeGas
- StyleFree-Standing
- Height (in.)39-42in
- Width (in.)24 in.
- Depth (in.)Less than 27 in.
- Burner TypeGrate
- Cleaning TypeStandard Cleaning
- # of Burners4-Burners
- Oven CookingTraditional
- CertificationsADA Compliant
