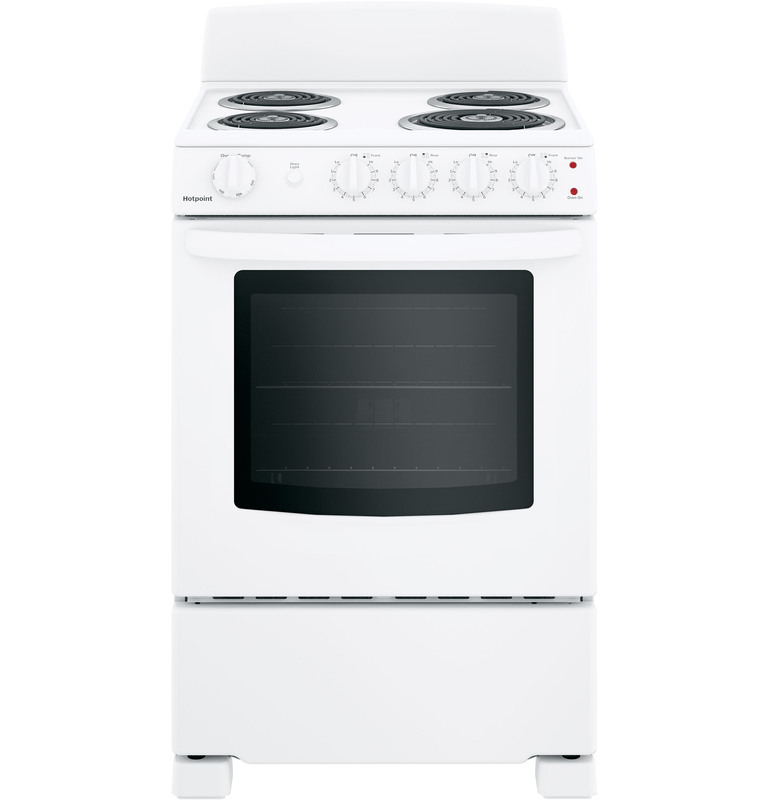

Hotpoint® RAS240DMWW ENERGY STAR® 24" Electric Free-Standing Front-Control Range

Features
- Front controls
Easily operate your range stove without reaching over hot pots and pans - Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety - Lift-up cooktop
Quickly clean up spills and remove crumbs from the subtop - Two oven racks
Feature a durable construction to help accommodate any size or type of cookware - Standard clean oven
Smooth surface makes cleaning by hand easier
CAPACITY
Total Capacity (cubic feet) | 2.90 |
FEATURES
Oven Control Features | Oven "ON" Light |
Oven Rack Features | 2 Oven Racks |
Element - Left Front | 6" 1250W Temp Limiting Coil |
Oven Cleaning Type | Standard Clean |
Product Type | Free-Standing Single Oven |
Heating Element "ON" Indicator Light | Yes |
Cooktop Type | Coil |
Fuel Type | Electric |
Element - Right Front | 8" 2400W Temp Limiting Coil |
Control Location | Front |
Control Type | Rotary knobs |
Sabbath Mode | Yes |
Leveling System | Easy Level System |
Element - Left Rear | 6" 1250W Temp Limiting Coil |
Cooking Technology | Traditional |
Removable One-Piece Drip Bowls | Chrome |
OU Certified | No |
Oven Cooking Modes | Bake Broil |
Cooktop Burner Type | Coil |
Element - Right Rear | 6" 1250W Temp Limiting Coil |
Cooktop Surface | Lift-Up Porcelain-Enamel |
Oven Rack Positions (Single or Upper/Lower) | 4 |
APPEARANCE
Textured Steel Side Panels | Yes |
Oven Door Features | Oven Window |
Handle Color | White |
Control Knobs | White |
Door Swing | Pull-Down |
Color Appearance | White |
WEIGHTS & DIMENSIONS
Net Weight | 101 |
Depth Without Handle | 24.625 |
Height to Cooking Surface (in.) | 36 3/4 +/- 1/4 |
Cabinet Width | 24.000000 |
Approximate Shipping Weight | 114 |
Overall Width | 23 3/4 |
Overall Height | 41 7/8 |
Overall Depth | 26 5/8 |
Depth with Door Open | 44.375 |
Oven Interior Dimensions (W x H x D) (in.) | 19 x 15-3/8 x 17-1/8 |
POWER / RATINGS
Electrical Requirements | 208/240V ; 60Hz ; 40A |
Amp Rating at 208V | 40 |
Broiler Wattage | 2400W |
Amp Rating at 240V | 40 |
KW Rating at 240V | 9.3 |
Bake Wattage | 2000W |
KW Rating at 208V | 7.2 |
WARRANTY
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
CERTIFICATIONS
Claims & Certifications | ENERGY STAR® Qualified ADA Compliant California Prop 65 View Chemical Content Reports |
Range
- BrandHotpoint
- Fuel TypeElectric
- StyleFree-Standing
- Height (in.)39-42in
- Width (in.)24 in.
- Depth (in.)Less than 27 in.
- Burner TypeCoil Burner
- Cleaning TypeStandard Cleaning
- # of Burners4-Burners
- Oven CookingTraditional
- CertificationsADA Compliant
