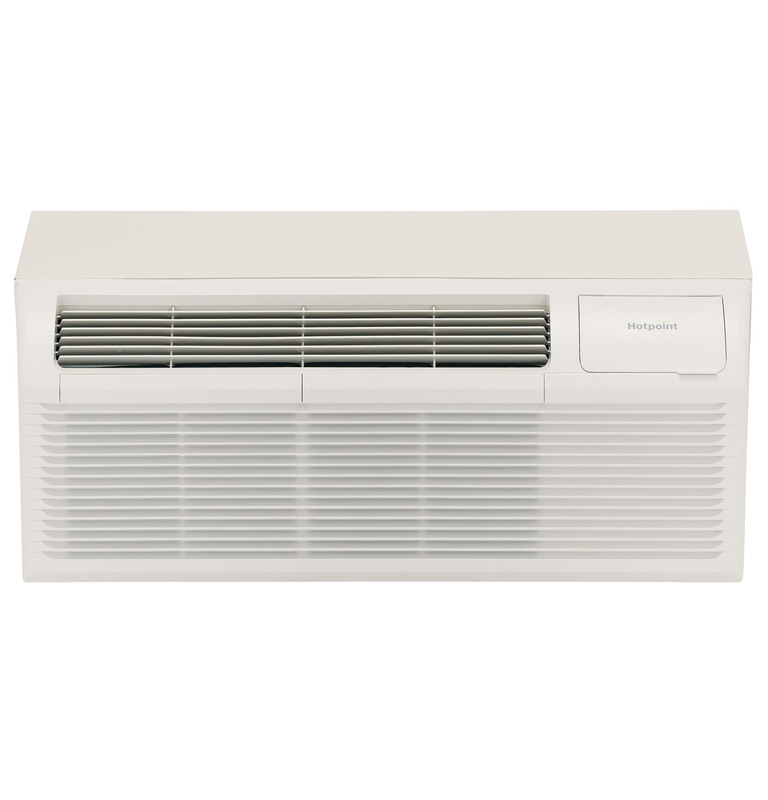

Hotpoint® AH12H09D3B-d PTAC Heat Pump 9,000 BTU, 230/208V, 20amp
$762.00
Tags:
Hotpoint® AH12H09D3B PTAC Heat Pump 9,000 BTU, 230/208V, 20amp
The Hotpoint® AH12H09D3B PTAC Heat Pump offers 9,000 BTUs of cooling and heating, perfect for maintaining comfortable temperatures year-round. Designed with 230/208V and 20 amps, this energy-efficient unit is ideal for both residential and commercial use. Experience reliable performance, eco-friendly operation, and consistent climate control in any season.
Product Details
Features
- 3-speed fan
Give guests control over their comfort with three fan speeds to choose from - 4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort - Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition - Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls - Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system
- 3-speed fan
Give guests control over their comfort with three fan speeds to choose from - 4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort - Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition - Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls - Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system
CAPACITY
Cooling BTUH (MAX) 9000.000000
CFM Indoor Fan Low 332
CFM Indoor Fan Medium 385
CFM Indoor Fan High 431
Cooling EER (BTUH / Watt) 11.4
Heating - Reverse Cycle - BTUH 8100/7900
Cooling BTUH (MIN) 8800
| Cooling BTUH (MAX) | 9000.000000 |
| CFM Indoor Fan Low | 332 |
| CFM Indoor Fan Medium | 385 |
| CFM Indoor Fan High | 431 |
| Cooling EER (BTUH / Watt) | 11.4 |
| Heating - Reverse Cycle - BTUH | 8100/7900 |
| Cooling BTUH (MIN) | 8800 |
FEATURES
Control Type Electronic
Fan Speed Selections 3 Cooling
3 Fan Only
3 Heating
Discharge Grille 2-position
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type R32
Manual Vent Control Hidden
"SmartFan" Fan Cycle Yes
Chassis Type Slide-In
Fan Motor 2
Heat Pump Yes
Unit Features Auto Power Recovery
Automatic Emergency Heat
Automatic Indoor Frost Control
Central Desk Control Compatibility
Freeze Sentinel
Heat Pump with Resistance Heat Backup
Power Cord (LCDI) included
Remote Thermostat Compatibility
Temperature Range 62 - 80 F
Heat - Cool Yes
Auto Power Recovery Yes
Rotary Compressor Yes
Heating - Reverse Cycle - COP 3.4
Outdoor Vent / Exhaust Yes
Venting Features Concealed Manual Vent Control
Vent Air Filter
Heating System Heat Pump with Resistance Backup
| Control Type | Electronic |
| Fan Speed Selections | 3 Cooling 3 Fan Only 3 Heating |
| Discharge Grille | 2-position |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R32 |
| Manual Vent Control | Hidden |
| "SmartFan" Fan Cycle | Yes |
| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Heat Pump | Yes |
| Unit Features | Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Power Cord (LCDI) included Remote Thermostat Compatibility |
| Temperature Range | 62 - 80 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Rotary Compressor | Yes |
| Heating - Reverse Cycle - COP | 3.4 |
| Outdoor Vent / Exhaust | Yes |
| Venting Features | Concealed Manual Vent Control Vent Air Filter |
| Heating System | Heat Pump with Resistance Backup |
APPEARANCE
Installation Through-the-Wall
Color Appearance White
| Installation | Through-the-Wall |
| Color Appearance | White |
WEIGHTS & DIMENSIONS
Overall Width 42.40 Approximate Shipping Weight 112.9
Overall Height 16 Overall Depth 20.90 Net Weight 102.5
| Overall Width | 42.40 |
| Approximate Shipping Weight | 112.9 |
| Overall Height | 16 |
| Overall Depth | 20.90 |
| Net Weight | 102.5 |
POWER / RATINGS
Heating - Reverse Cycle - Watts 695/680
Cooling - Amperes; F.L. - Cooling 3.5/3.8
Cooling - Amperes 3.46/3.75
Cooling - Watts 785/770
Heating - Reverse Cycle - Amps 3.04/3.28
Voltage (MIN) 208
Heating - Electric - Heater Watts 3535/2900
Voltage (MAX) 230.000000
Heating - Electric - Heater Amps 15.3/13.7
| Heating - Reverse Cycle - Watts | 695/680 |
| Cooling - Amperes; F.L. - Cooling | 3.5/3.8 |
| Cooling - Amperes | 3.46/3.75 |
| Cooling - Watts | 785/770 |
| Heating - Reverse Cycle - Amps | 3.04/3.28 |
| Voltage (MIN) | 208 |
| Heating - Electric - Heater Watts | 3535/2900 |
| Voltage (MAX) | 230.000000 |
| Heating - Electric - Heater Amps | 15.3/13.7 |
WARRANTY
Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
CERTIFICATIONS
Claims & Certifications AHRI
CSA
CUL
UL
NRCAN
| Claims & Certifications | AHRI CSA CUL UL NRCAN |
