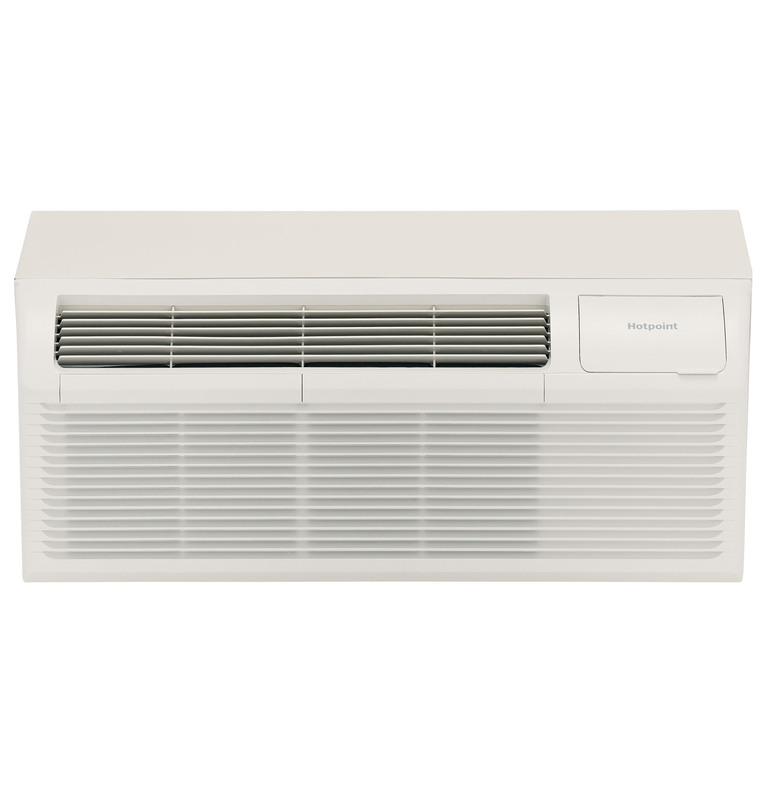

Hotpoint® AH11H09D3B-d PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 20 amps, 230/208 Volt
$949.00
Tags:
Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 9,000 BTU, 20 amps, 230/208 Volt
The Hotpoint® AH11H09D3B PTAC Heat Pump Unit with Electric Heat Backup provides 9,000 BTUs of cooling and efficient heating, ideal for year-round comfort in medium-sized spaces. This 230/208 Volt unit with 20 amps offers reliable heating and cooling with an electric heat backup, making it perfect for residential and commercial use. Experience energy-efficient performance and consistent climate control in any season.
Product Details
Features
- 3-speed fan
Give guests control over their comfort with three fan speeds to choose from - 4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort - Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition - Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls - Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system
- 3-speed fan
Give guests control over their comfort with three fan speeds to choose from - 4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort - Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition - Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls - Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system
CAPACITY
Cooling BTUH (MAX) 9000.000000
CFM Indoor Fan Low 394
CFM Indoor Fan Medium 417
CFM Indoor Fan High 435
Cooling EER (BTUH / Watt) 11.4
Heating - Reverse Cycle - BTUH 8100/7900
Cooling BTUH (MIN) 8800
| Cooling BTUH (MAX) | 9000.000000 |
| CFM Indoor Fan Low | 394 |
| CFM Indoor Fan Medium | 417 |
| CFM Indoor Fan High | 435 |
| Cooling EER (BTUH / Watt) | 11.4 |
| Heating - Reverse Cycle - BTUH | 8100/7900 |
| Cooling BTUH (MIN) | 8800 |
FEATURES
Control Type Electronic
Fan Speed Selections 3 Cooling
3 Fan Only
3 Heating
Discharge Grille 2-position
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type R410A
Manual Vent Control Hidden
"SmartFan" Fan Cycle Yes
Chassis Type Slide-In
Fan Motor 2
Heat Pump Yes
Unit Features Auto Power Recovery
Automatic Emergency Heat
Automatic Indoor Frost Control
Central Desk Control Compatibility
Freeze Sentinel
Heat Pump with Resistance Heat Backup
Power Cord (LCDI) included
Remote Thermostat Compatibility
Temperature Range 62 - 86 F
Heat - Cool Yes
Auto Power Recovery Yes
Rotary Compressor Yes
Heating - Reverse Cycle - COP 3.4
Outdoor Vent / Exhaust Yes
Venting Features Concealed Manual Vent Control¶Vent Air Filter
Heating System Heat Pump with Resistance Backup
| Control Type | Electronic |
| Fan Speed Selections | 3 Cooling 3 Fan Only 3 Heating |
| Discharge Grille | 2-position |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Manual Vent Control | Hidden |
| "SmartFan" Fan Cycle | Yes |
| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Heat Pump | Yes |
| Unit Features | Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Power Cord (LCDI) included Remote Thermostat Compatibility |
| Temperature Range | 62 - 86 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Rotary Compressor | Yes |
| Heating - Reverse Cycle - COP | 3.4 |
| Outdoor Vent / Exhaust | Yes |
| Venting Features | Concealed Manual Vent Control¶Vent Air Filter |
| Heating System | Heat Pump with Resistance Backup |
APPEARANCE
Installation Through-the-Wall
Color Appearance White
| Installation | Through-the-Wall |
| Color Appearance | White |
WEIGHTS & DIMENSIONS
Overall Width 42 Approximate Shipping Weight 132
Overall Height 16 Overall Depth 21 Net Weight 106.9
| Overall Width | 42 |
| Approximate Shipping Weight | 132 |
| Overall Height | 16 |
| Overall Depth | 21 |
| Net Weight | 106.9 |
POWER / RATINGS
Heating - Reverse Cycle - Watts 716/699
Cooling - Amperes; F.L. - Cooling 3.5/3.8
Cooling - Amperes 3.5/3.8
Cooling - Watts 785/770
Heating - Reverse Cycle - Amps 3.0/3.3
Voltage (MIN) 208
Heating - Electric - Heater Watts 3535/2935
Voltage (MAX) 230.000000
Heating - Electric - Heater Amps 15.3/13.7
| Heating - Reverse Cycle - Watts | 716/699 |
| Cooling - Amperes; F.L. - Cooling | 3.5/3.8 |
| Cooling - Amperes | 3.5/3.8 |
| Cooling - Watts | 785/770 |
| Heating - Reverse Cycle - Amps | 3.0/3.3 |
| Voltage (MIN) | 208 |
| Heating - Electric - Heater Watts | 3535/2935 |
| Voltage (MAX) | 230.000000 |
| Heating - Electric - Heater Amps | 15.3/13.7 |
WARRANTY
Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
CERTIFICATIONS
Claims & Certifications AHRI
UL
CUL
| Claims & Certifications | AHRI UL CUL |
