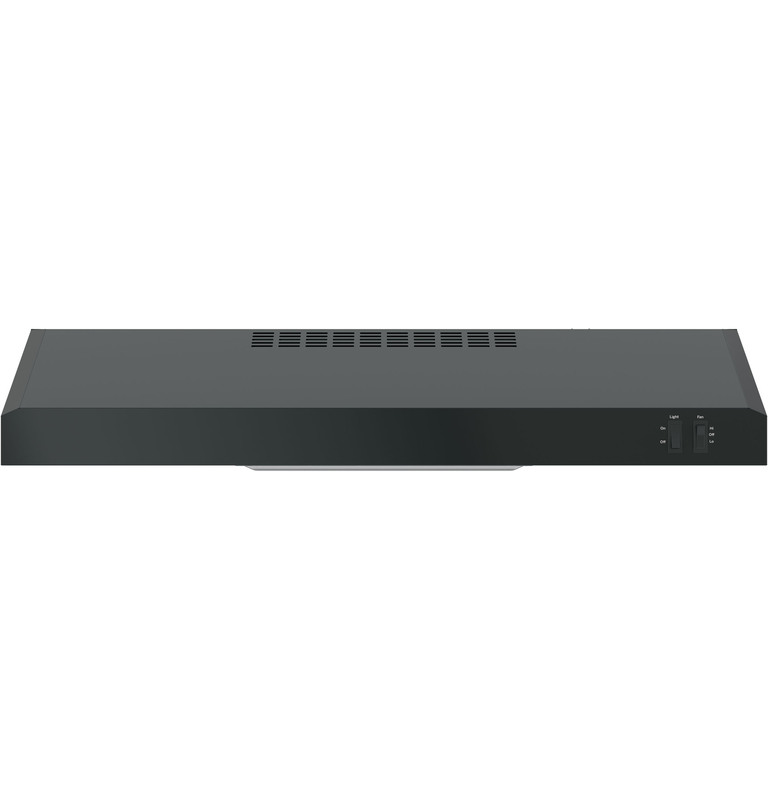

GE® JVX3300DJBB 30" Under The Cabinet Hood

Features
- Easy installation
10 minutes or less by one person - Two-speed, 200-CFM venting system
Removes smoke, grease, odors and moisture - Front controls
Enjoy easy access and a subtle appearance - Cooktop lighting
Illuminate cooking space and surrounding surface - bulbs included - Convertible venting options
Select recirculating or external venting
FEATURES
Cooktop Lighting | 1 Incandescent |
Fan Speed Control | 2-Speed |
Max CFM | 200 |
Ducting | Vertical or Horizontal; 7" Round |
Light Controls | On/Off |
Filter Cleaning | Dishwasher Safe |
CFM/ Sones Rating | 130/5.0 (Low Speed) 200/6.5 (High Speed) |
Exhaust Options | Recirculating Vented to Outside |
Product Type | |
Control Type | Rocker Switch |
Control Location | Front |
Charcoal Filter | JXCF53 - Included |
Removable Grease Filter(s) | Yes |
ECONOMICAL / QUIET
Venting Type | Convertible |
APPEARANCE
Blower / Light Switch Color | White |
Material | Metal |
Color Appearance | White |
WEIGHTS & DIMENSIONS
Cabinet Width | 30.000000 |
Net Weight | 17 |
Overall Depth | 20 |
Approximate Shipping Weight | 23 |
Overall Height | 5 1/2 |
Overall Width | 29 7/8 |
POWER / RATINGS
Electrical Requirements | 120V ; 60Hz ; 2.5A |
Amp Rating at 120V | 2.5 |
ACCESSORIES
Optional Accessories | JXHC1 - Power Cord Kit |
WARRANTY
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
CERTIFICATIONS
Claims & Certifications | ADA Compliant California Prop 65 CEC Regulated |
Range Hood
- BrandGE
- Range Hood TypeUnder Cabinet
- Width (in.)Standard 30"
- Height (in.)5 1/2 in.
- Depth (in.)20 in.
- Venting TypeExterior
- CertificationsADA Compliant
