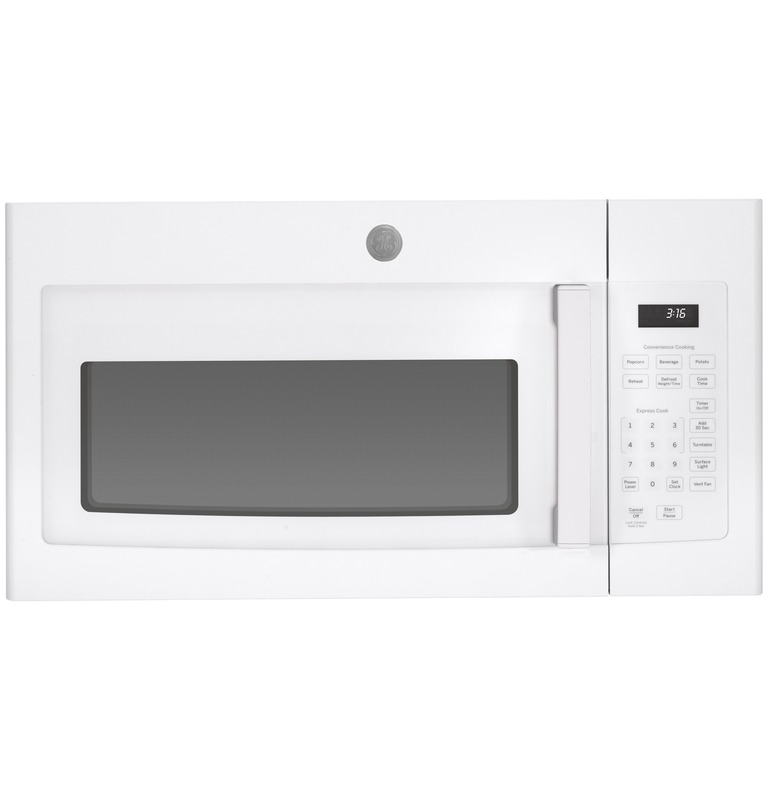

GE® JVM3160DFWW 1.6 Cu. Ft. Over-the-Range Microwave Oven

Features
- Charcoal filter replacement for microwaves with behind the door grille
Easily install your new charcoal odor filter - 1.6 cu. ft. capacity
1000 Watts (IEC-705 test procedure) - Convenience cooking controls
Operating made quick and easy - Auto and time defrost
Defrosting times and power levels are programmed automatically or manually for optimal results - Turntable On/Off
Controls turntable operation
CAPACITY
| Total Capacity (cubic feet) | 1.60 |
| Vent CFM | 300 |
FEATURES
| Display Type | LED |
| Electronic Digital Display with Clock | Yes |
| Display Screen Size (Diagonal Length) | 2.01 |
| Cooking Modes | Microwave |
| Express Cook | 1-6 Minutes |
| Control Location | Side Controls |
| Style | Over-The-Range |
| Microwave Watts (IEC-705) | 1000 |
| Turntable On / Off | Yes |
| Power Levels | 10 |
| Control Type | Electronic Touch |
| Cooktop Lighting | Bright/Night/Off |
| Control Features | Add 30 Seconds Cancel/Off Lock Controls Power Level Set Clock Start/Pause Surface Light Timer On/Off Turntable On/Off Vent Fan |
| Product Type | Over-the-range Microwave |
| Microwave Convenience Cooking Controls | Beverage Cook Time Defrost: Weight/Time Popcorn Potato Reheat |
| Turntable | Glass |
| Cooking Technology | Microwave |
| Exhaust Fan | 2-Speed 300-CFM |
| Vent | Back Front Top |
| Turntable Size | 12.75 |
| Interior Oven Light | Incandescent |
ECONOMICAL / QUIET
| Non-Vented | Recirculating (Factory Set - Filter Included) |
| Venting Type | Convertible to External Venting |
APPEARANCE
| Door Swing | Hinges on Left |
| Control Knobs | Brushed Bronze Appearance |
| Handle Color | White |
| Oven Door Features | Oven Window |
| Installation | Easy Mount |
| Door Color | White |
| Case Color | White |
| Color Appearance | White |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 63 |
| Cabinet Width | 30.000000 |
| Net Weight | 63 |
| Overall Width | 29 7/8 |
| Overall Depth | 15 9/16 |
| Overall Height | 16 1/8 |
| Cavity (W x H x D) | 18-13/16 x 9-1/4 x 14-13/32 |
POWER / RATINGS
| Input Volts/Hertz | 120/60 |
| Electrical Input - 120V Amperage | 15 |
| Electrical Input - 120V Watts | 1580 |
ACCESSORIES
| Optional Side Filler Panel Kit | JX36BWW |
| Optional Kits | 15" Bump Out Kit - JX15BUMPWW |
| Recirculating Charcoal Filter Kit | JX81C or WB02X33061 (Included) |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CERTIFICATIONS
| Claims & Certifications | California Prop 65 CEC Regulated View Chemical Content Reports |
Microwave
- BrandGE
- Microwave TypeOver-the-Range Microwave
- Capacity (cu ft)1.6-1.9 cu. Ft.
- Width (in.)More than 26 in.
- Height (in.)15-17 in.
- Depth (in.)15-16 in.
- Handle TypeHandle
- Vent TypeConvertible
- CertificationsNone
