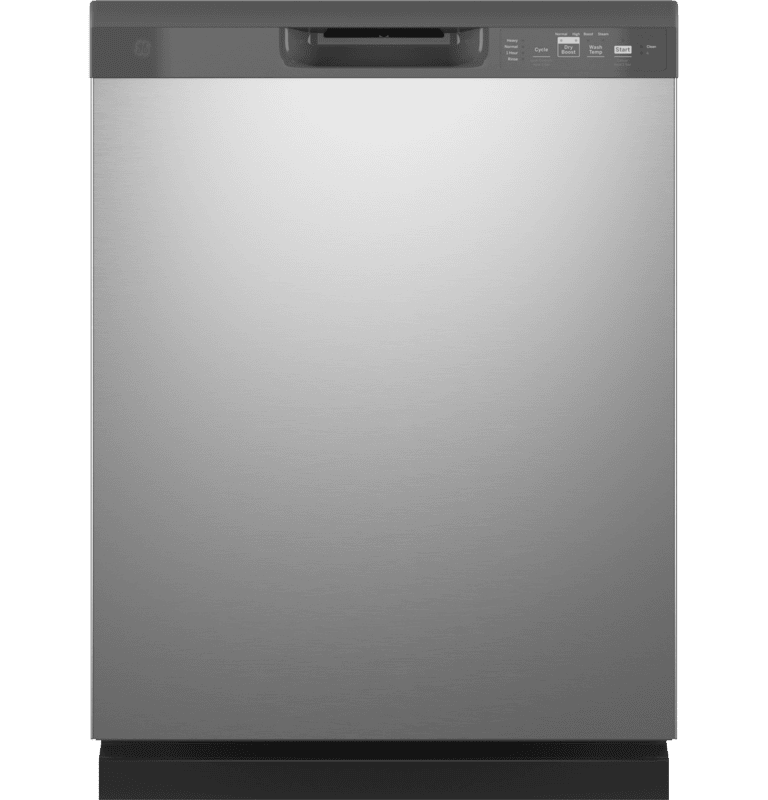

GE® GDF510PSRSS ENERGY STAR® Dishwasher with Front Controls

Features
- Reliable Performance
This American made dishwasher is durable, long-lasting and dependable. Its consistent performance will give you totally clean and dry dishes with every cycle - Dry Boost™
Dry Boost outperforms standard heated dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier.*Compared to heated dry option - Water Leak Sensor
This dishwasher features Active Flood Protect, to prevents potential overflows for greater peace of mind. A water sensor alarm cancels the wash cycle before a flood may occur and alerts you with blinking lights and an alert tone - Reliable Dishwasher Performance
This reliable dishwasher is built to provide years of dependable performance, so you know your dishes will be clean and dry every time - High Wash Performance
Get a complete wash with no pre-rinse, thanks to a variety of powerful clean wash cycles. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time
FEATURES
| Wash System | 2-Level |
| Tub Type | Tall Tub |
| Leveling System | 4 Leveling Legs |
| OU Certified | No |
| Number of Place Settings | 14 |
| Dishwasher Options | Automatic Hot Start Dry Boost™ (High) Dry Boost™ (Normal) Lock Controls Sabbath Mode Start/Reset Steam Wash TempBoost |
| Latch | Center Pull |
| Number of Options | 4 |
| Style | Built-In Front Control |
| Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |
| Rack Features | 1 Piece Silverware Basket Ball-Tipped Tines |
| Dishwasher Cycles | 1 Hour Wash Heavy Wash Normal Wash Rinse |
| Rack Color | Silver |
| Dispenser | Detergent Rinse Aid |
| WiFi Connect | Optional (Requires part no. PBX23W00Y1) |
| Control Type | 4 Touchpads Front Controls Fully Integrated Inlaid Electronic Buttons |
| Dishwasher Drying Features | Calrod Heater Dry Boost™ |
| Wash Arms | Lower Middle |
| Wash System Features | Active Flood Protect Automatic HotStart Automatic Temperature Control Fill Level Pressure Sensor Piranha™ Hard Food Disposer with removable filter |
| Exterior Style | Traditional |
| Active Flood Protection | Active Flood Protect |
| Upper Rack | Standard |
| Dishwasher Control Features | 1 "Clean" Cycle Progress Indicator Last Cycle Memory |
| Number of Cycles | 4 |
| Tub and Door Liner | Gray Plastic |
| Sabbath Mode | Yes |
| Showroom Power Mode | Yes |
ECONOMICAL / QUIET
| Quiet Package | 59 dBA |
APPEARANCE
| Handle | Integrated |
| Installation | Built-Up Floor Capable Side Installation or Top Installation Included |
| Handle Color | White |
| Door Style | Flat Door |
| Door Appearance | Full-length flat door |
| Color Appearance | White |
WEIGHTS & DIMENSIONS
| Height w/ Legs Retracted - Minimum Height | 33.375 |
| Cutout Height (in) | 33 1/2 in |
| Cutout Width (in) | 24 in |
| Overall Depth | 24 |
| Cabinet Width | 24.000000 |
| Net Weight | 55 |
| Overall Width | 23 3/4 |
| Approximate Shipping Weight | 65 |
| Overall Height | 33 3/8 |
| Cutout Depth (in) | 24 in |
| Height w/Legs Extended - Maximum Height | 34.625 |
| Depth with Door Open | 27.5 |
POWER / RATINGS
| Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
| Energy Consumption (kWh/year) | 240 |
| Electrical Requirements | 120V ; 60Hz ; 7.1A |
| Calrod Heater Watts | 800/500 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
CERTIFICATIONS
| Claims & Certifications | ENERGY STAR® Qualified MADE IN AMERICA: 70 to 90% U.S. Content California Prop 65 CEC Regulated |
Dishwasher
- BrandGE
- Control TypeFront Control
- Width (in.)24 in
- Height (in)33-34 in.
- Depth (in.)24 in.
- TubPlastic Tub
- Cycles2-Cycle
- CertificationsENERGY STAR Certified
