GE® AKCQ12DCJ-d Built-In Thru-Wall Air Conditioner I 12K BTU, 230/208 Volt, Cooling Only

• True Universal Fit

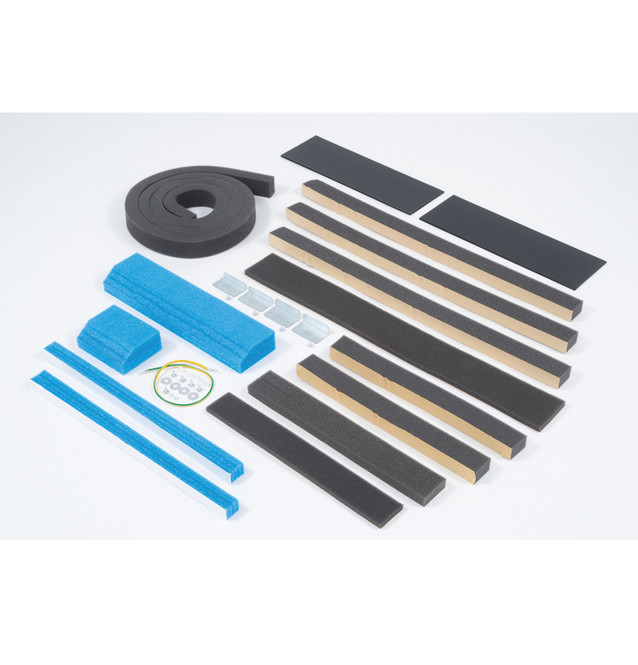

  Simple slide-in installation is built in for a precise fit into a variety of different wall sleeves. Quickly fit and retrofit with confidence. Trim kit and installation kit included
• Sleek Appearance
  Streamlined design and bright white color will complement every room—cooling or heating your home in style
• Large LCD Display
  Intuitive & easy-to-read LCD display controls room air comfort at a single touch
• ECO Mode
  Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable
• Dry Mode
  Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification
• 6-Way Directional Airflow
  Direct where the air flows with up to 6 directional vents—cooling and/or heating the areas of the room that need it the most
• Washable Filter
  Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air—providing a cleaner environment
• Auto Mode
  Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort
• Remote Control Included
  Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room
• Universal Trim Kit
  Designed for a custom appearance and easy installation, the trim kit provides a seamless appearance to the built-in wall sleeve
• Sleep Mode
  Efficient setting to adjust temperature during sleep times for up to 7 hours, creating more energy savings
• 2 Year Warranty
  GE Appliances cares about its products, offering replacement of any part of the air conditioner which fails due to defect in materials or workmanship up to 2 years from the date of purchase

Additional Features

• ADA Compliant
• ENERGY STAR® Qualified
• On/Off Timer
• Energy Saver
• Auto Fan
• Dehumidify Function
• Infrared Remote Control
• Batteries Included
• Filter Indicator

Specs & Details

Dimensions: 14 9/16 H x 24 1/16 W x 19 D

ACCESSORIES

Wall Case

RAB46/47/48/24 Required At Additional Cost

APPEARANCE

Color Appearance

White

CAPACITY

Cooling BTUH (MAX)	12,000 Btu
Cooling BTUH (MIN)	11,700 Btu
Cooling EER (BTUH / Watt)	10.5
Dehumidification (pts./hr.)	3.6

FEATURES

Air Flow Volume CFM High/Medium/Low	277/258/235
Chassis Type	Fixed
Cord Length	48"
Digital Time Temp Display	Yes
Fan Speed Selections	3 Cooling 3 Fan Only
Filter Type	Easy Access Permanent Mesh Rigid Washable Tilt-Out
LCDI / AFCI power cord	Yes
Louver Style	6-Way
Optional Grill	RAG13/RAG13A/RAG14E
Plug Type	B / 6-15P
Power Cord Length	6 ft
Product Type	Built-In
Refrigerant Type	R32
Remote Control	Yes
Room Air Conditioner Features	On/Off Timer Energy Saver Auto Fan Dehumidify Function Sleep Mode Infrared Remote Control Batteries Included Filter Indicator
Rotary Compressor	Yes
Thermostat Type	Thermistor
Vent/Air Exchange Exhaust	Top

POWER / RATINGS

CEER	10.5
Cooling - Rated Cooling Amps AHAM	5.2
Cooling - Watts	1142/1114
Voltage (MAX)	230 V
Voltage (MIN)	208 V
Voltage/Hertz/Phase	230-208/60/1
Volts/Hertz	230V-208V/60Hz

WARRANTY

Labor Warranty	Limited 2-year entire appliance
Parts Warranty	Limited 2-year entire appliance Limited 2-year refrigeration system

WEIGHTS & DIMENSIONS

Approximate Shipping Weight	87 lb
Cutout Depth (in)	16.375 in
Cutout Height (in)	15.625 in
Cutout Width (in)	26 in
Depth to Louvers	20 5/8 in
Net Weight	87 lb
Overall Depth	19 in
Overall Height	14 9/16 in
Overall Width	24 1/16 in
