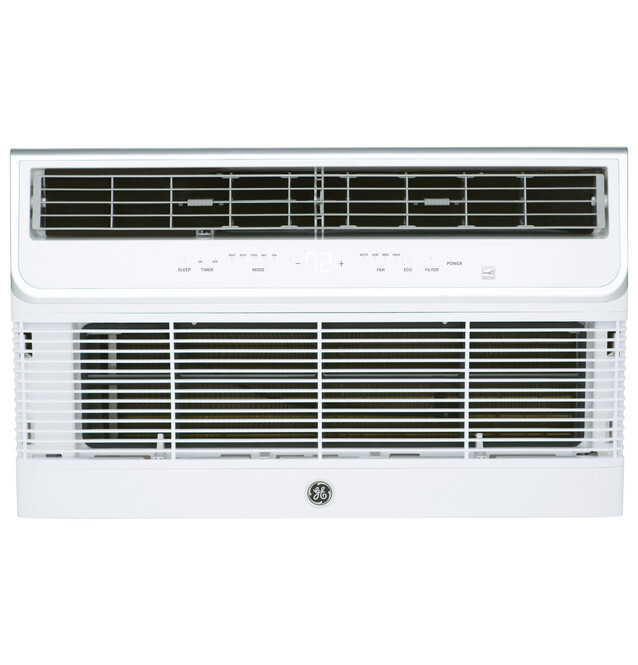

GE® AJHQ12DCH-d 230/208 Volt Built-In Heat Pump Room Air Conditioners

True Built In Design

• The ultimate fit & finish for more usable space and the best in built-in installation. Sleeve and chassis are perfectly integrated, creating a seamless fit without leaks or gaps

Premium Finish

• Bright, clean color & a decorative metallic silver accent encasing the air discharge louver, provide an overall sleek appearance

Electronic Cap Touch Controls

• Controls offer a high-end and smooth to-the-touch panel

Large LCD Auto-Dimming Display

• Intuitive & large white LCD display can be easily seen from anywhere in the room. Convenient Auto-Dimming feature provides ambient lighting during the night

Slim Room Front

• A slim room front provides more usable space in the room. It’s the sleekest design in the industry

ECO Mode

• Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable

Dry Mode

• Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification

Auto Mode

• Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort

6-Way Directional Airflow

• Direct where the air flows with up to 6 directional vents—cooling and/or heating the areas of the room that need it the most

Washable Filter

• Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air—providing a cleaner environment

Remote Control Included

• Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room

Quiet Performance

• Designed & engineered by GE Appliances for ultra-quiet comfort

Commercial Grade

• Designed for durability with high-grade components and tested for long performance

Specs & Details

ACCESSORIES

Wall Case

RAB46/47/48/26 Required At Additional Cost

APPEARANCE

Color Appearance	Soft Gray
Installation	Wall Mounted

CAPACITY

Cooling BTUH (MAX)	11,800 Btu
Cooling BTUH (MIN)	11,600 Btu
Dehumidification (pts./hr.)	3.4/3.4
Heating - Electric - BTUH - AHAM - 1R	10600/8600
Heating - Reverse Cycle - BTUH - AHAM - H.P.	9000/8800

FEATURES

Air Discharge	Over / Under
Airflow (cfm) Roomside (hi/low)	285/245, 275/235
Chassis Type	Slide-In
Control Type	Electronic
Cord Length	68"
Fan Speed Selections	3 Cooling 3 Fan Only
Filter Type	Rigid Washable
Heating - Reverse Cycle - COP	2.3
Line Cord Recommended Circuit Prot. (time delay)	20 Amps
Louver Style	6-Way
Optional Grill	RAG13/RAG13A/RAG14E
Outdoor Vent / Exhaust	Yes
Plug Type	Perpendicular/Right Angle LCDI
Product Type	Built-In
Refrigerant Type	R410A
Remote Control	Yes
Room Air Conditioner Features	Smart Fan Switch Timer Remote Control Batteries Included
Rotary Compressor	Yes
Style	Wall Mount Only
Unit Type	Heat Pump

POWER / RATINGS

CEER	9.6/9.6
Cooling - Rated Cooling Amps AHAM	5.6/6.2
Cooling - Watts	1240/1220
Heating - Electric - Heater Amps	15.0/13.5
Heating - Electric - Heater Watts	3450/2821
Voltage (MAX)	230 V
Voltage (MIN)	208 V
Voltage/Hertz/Phase	230-208/60/1

WARRANTY

Labor Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Parts Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Warranty Notes	See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight	94 lb
Depth to Louvers	5 in
Net Weight	94 lb
Overall Depth	21 13/16 in
Overall Depth (Excludes Sleeve)	19 29/32 in
Overall Height	15 5/8 in
Overall Height (Excludes Sleeve)	14 7/8 in
Overall Width	26 in
Overall Width (Excludes Sleeve)	24 13/16 in
