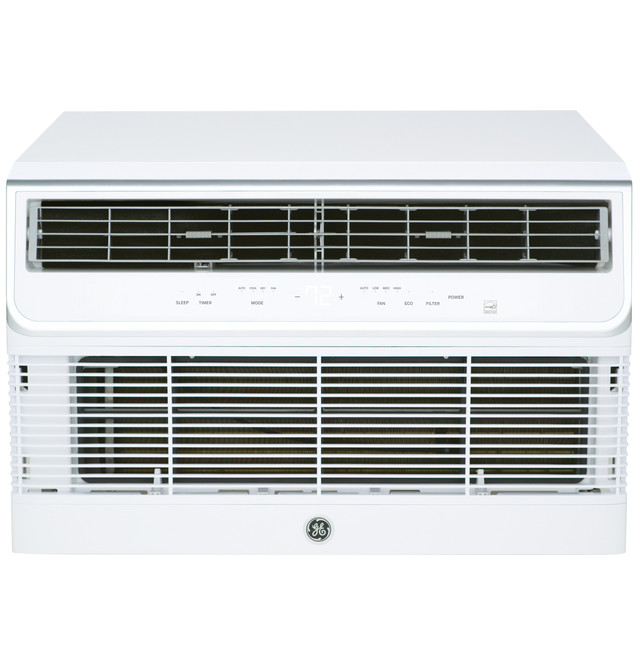

GE® AJCQ12DCH-d Built-In Thru-Wall Air Conditioner I 12K BTU, 230/208 Volt, Cooling Only

• True Built In Design
  The ultimate fit & finish for more usable space and the best in built-in installation. Sleeve and chassis are perfectly integrated, creating a seamless fit without leaks or gaps

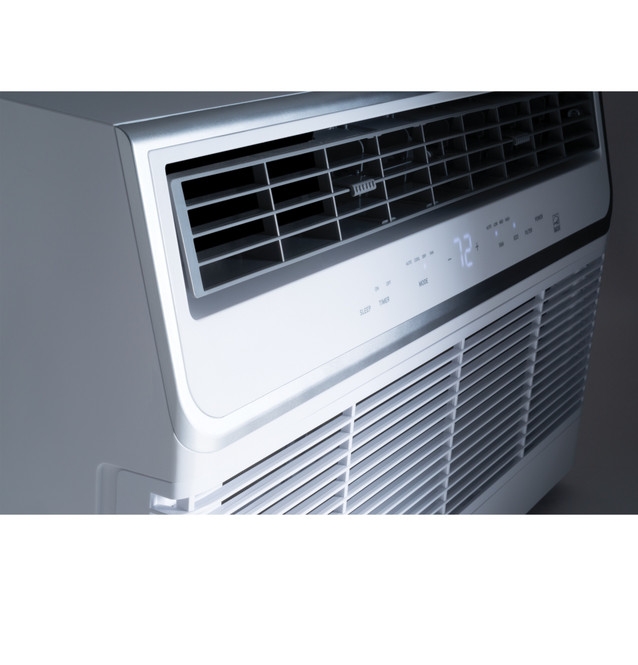

• Premium Finish
  Bright, clean color & a decorative metallic silver accent encasing the air discharge louver, provide an overall sleek appearance
• Electronic Cap Touch Controls
  Controls offer a high-end and smooth to-the-touch panel
• Large LCD Auto-Dimming Display
  Intuitive & large white LCD display can be easily seen from anywhere in the room. Convenient Auto-Dimming feature provides ambient lighting during the night
• Slim Room Front
  A slim room front provides more usable space in the room. It’s the sleekest design in the industry
• ECO Mode
  Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable
• Dry Mode
  Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification
• Auto Mode
  Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort
• 6-Way Directional Airflow
  Direct where the air flows with up to 6 directional vents—cooling and/or heating the areas of the room that need it the most
• Washable Filter
  Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air—providing a cleaner environment
• Remote Control Included
  Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room
• Quiet Performance
  Designed & engineered by GE Appliances for ultra-quiet comfort
• Commercial Grade
  Designed for durability with high-grade components and tested for long performance

Additional Features

• ADA Compliant
• ENERGY STAR® Qualified
• Smart Fan Switch
• Energy Saver
• Filter Reminder Function
• Batteries Included

Specs & Details
Dimensions: 15 5/8 H x 26 W x 21 13/16 D

ACCESSORIES

Wall Case

RAB46/47/48/26 Required At Additional Cost

APPEARANCE

Color Appearance	White
Installation	Wall Mounted

CAPACITY

Cooling BTUH (MAX)	12,000 Btu
Cooling BTUH (MIN)	11,700 Btu
Cooling EER (BTUH / Watt)	10.5
Dehumidification (pts./hr.)	3.4/3.4

FEATURES

Air Discharge	Over / Under
Airflow (cfm) Roomside (hi/low)	270/250/230, 260/240/220
Chassis Type	Slide-In
Control Type	Electronic
Cord Length	68"
Fan Speed Selections	3 Cooling 3 Fan Only
Filter Type	Rigid Tilt-Out Washable
Louver Style	6-Way
Optional Grill	RAG13/RAG13A/RAG14E
Outdoor Vent / Exhaust	Yes
Plug Type	Tandem/Right Angle/LCDI
Product Type	Built-In
Refrigerant Type	R410A
Remote Control	Yes
Room Air Conditioner Features	Smart Fan Switch Energy Saver 24 Hr. Timer Filter Reminder Function Remote Control Batteries Included
Rotary Compressor	Yes
Style	Thru-Wall
Temperature Range	60->85 F
Thermostat Type	Electronic Digital
Unit Type	Cool Only

POWER / RATINGS

CEER	10.5
Cooling - Rated Cooling Amps AHAM	5.3/5.7
Cooling - Watts	1130/1110
Voltage/Hertz/Phase	230-208/60/1

WARRANTY

Labor Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Parts Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Warranty Notes	See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight	92 lb
Depth to Louvers	5 in
Net Weight	92 lb
Overall Depth	21 13/16 in
Overall Depth (Excludes Sleeve)	19 29/32 in
Overall Height	15 5/8 in
Overall Height (Excludes Sleeve)	14 7/8 in
Overall Width	26 in
Overall Width (Excludes Sleeve)	24 13/16 in
