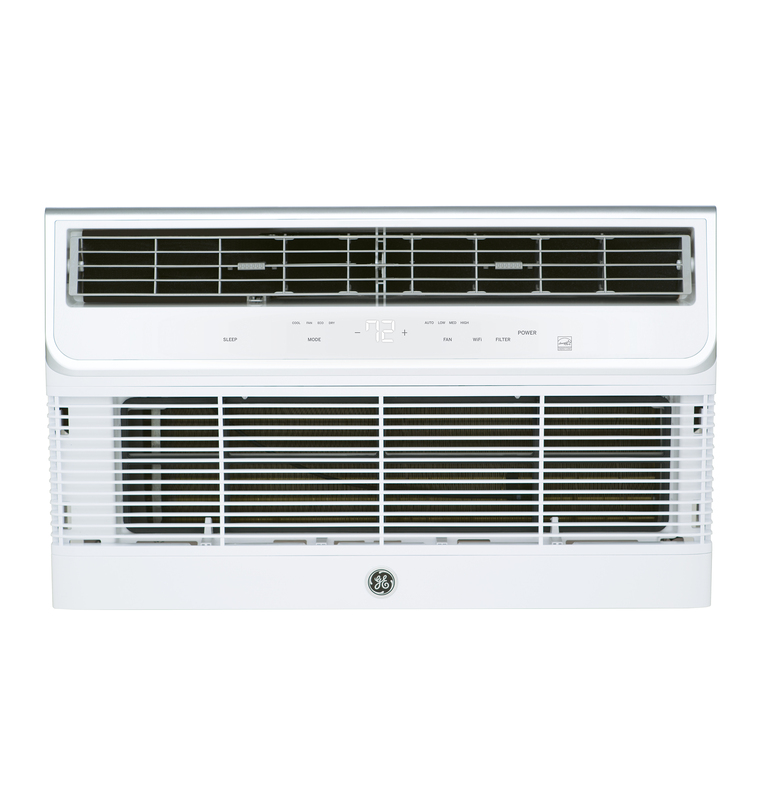

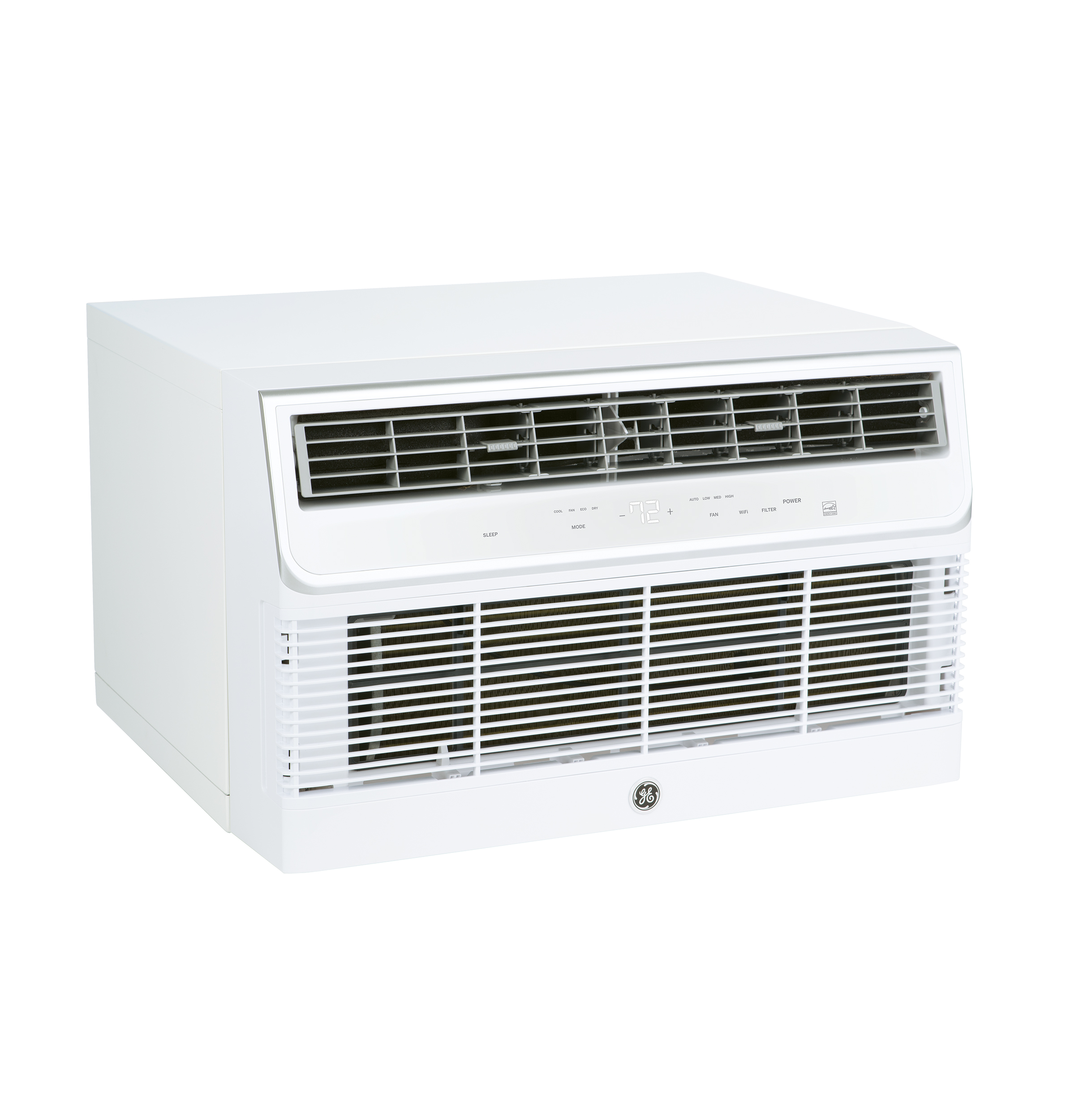

GE® AJCQ08AWH-d ENERGY STAR® 115 Volt Built-In Cool-Only Room Air Conditioner
Features
- Built-in WiFi powered by SmartHQ™
- True Built In Design
The ultimate fit & finish for more usable space and the best in built-in installation. Sleeve and chassis are perfectly integrated, creating a seamless fit without leaks or gaps - Premium Finish
Bright, clean color & a decorative metallic silver accent encasing the air discharge louver, provide an overall sleek appearance - Electronic Cap Touch Controls
Controls offer a high-end and smooth to-the-touch panel - Large LCD Auto-Dimming Display
Intuitive & large white LCD display can be easily seen from anywhere in the room. Convenient Auto-Dimming feature provides ambient lighting during the night
CAPACITY
| Cooling EER (BTUH / Watt) | 10.6 |
| Cooling BTUH (MAX) | 8300.000000 |
| Dehumidification (pts./hr.) | 1.9 |
FEATURES
| Louver Style | 6-Way |
| Product Type | Built-In |
| Air Discharge | Over / Under |
| Style | Thru-Wall |
| Chassis Type | Slide-In |
| Connected Capabilities | Amazon Alexa Google Home |
| Filter Type | Rigid Tilt-Out Washable |
| WiFi Connect | Built-In |
| Remote Control | Yes |
| Temperature Range | 60->85 F |
| Control Type | Electronic |
| Cord Length | 75" |
| Airflow (cfm) Roomside (hi/low) | 250/230/210 |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Room Air Conditioner Features | Batteries Included Energy Saver Filter Reminder Function Remote Control Smart Fan Switch |
| Fan Speed Selections | 3 Cooling 3 Fan Only |
| Optional Grill | RAG13/RAG13A/RAG14E |
| Refrigerant Type | R410A |
| Plug Type | Parallel/Right Angle LCDI |
| Thermostat Type | Electronic Digital |
| Unit Type | Cool Only |
APPEARANCE
| Color Appearance | White |
| Installation | Wall Mounted |
WEIGHTS & DIMENSIONS
| Depth to Louvers | 5 |
| Overall Height | 15 5/8 |
| Overall Depth | 21 13/16 |
| Overall Depth (Excludes Sleeve) | 19.90625 |
| Overall Width (Excludes Sleeve) | 24.8125 |
| Net Weight | 82 |
| Overall Width | 26 |
| Approximate Shipping Weight | 82 |
| Overall Height (Excludes Sleeve) | 14.875 |
POWER / RATINGS
| Volts/Hertz | 115V; 60Hz |
| Cooling - Watts | 780 |
| Cooling - Rated Cooling Amps AHAM | 7.2 |
| CEER | 10.6 |
| Voltage (MAX) | 115.000000 |
| Voltage/Hertz/Phase | 115/60/1 |
ACCESSORIES
| Wall Case | RAB46/47/48/26 Required At Additional Cost |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 2-year entire appliance Limited 5-year sealed refrigerating system |
CERTIFICATIONS
| Claims & Certifications | ENERGY STAR® Qualified ADA Compliant UL CUL AHAM EEV California Prop 65 |
