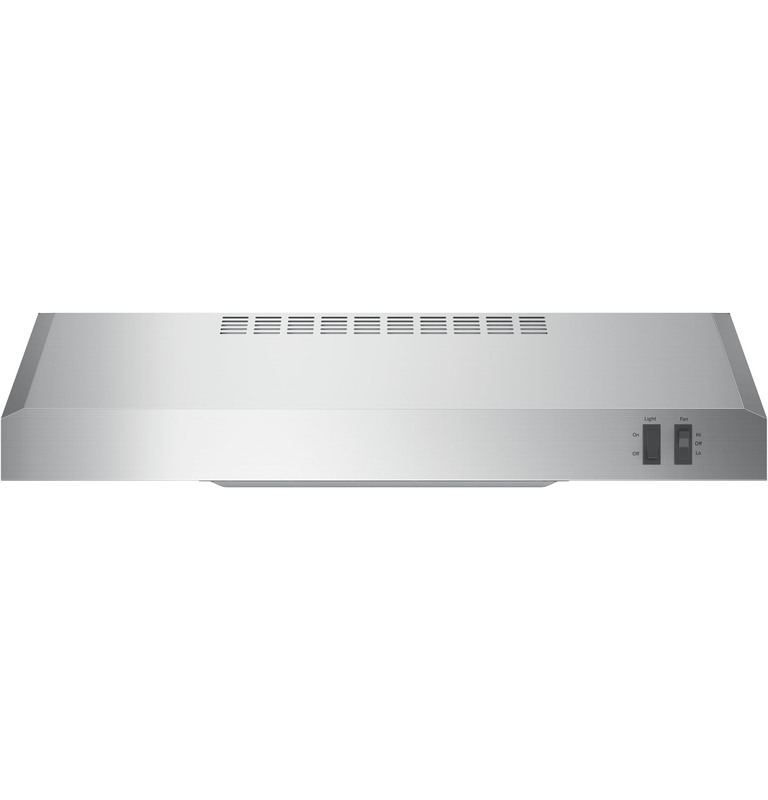

GE® JVX3240SJSS 24" Under The Cabinet Hood

Features
- Easy installation
10 minutes or less by one person - Two-speed, 200-CFM venting system
Removes smoke, grease, odors and moisture - Front controls
Enjoy easy access and a subtle appearance - Cooktop lighting
Illuminate cooking space and surrounding surface - bulbs included - Convertible venting options
Select recirculating or external venting
FEATURES
| Cooktop Lighting | 1 Incandescent |
| Fan Speed Control | 2-Speed |
| Max CFM | 200 |
| Ducting | Vertical or Horizontal; 7" Round |
| Light Controls | On/Off |
| Filter Cleaning | Dishwasher Safe |
| Fan Controls | Rocker |
| CFM/ Sones Rating | 130/5.0 (Low Speed) 200/6.5 (High Speed) |
| Exhaust Options | Recirculating Vented to Outside |
| Product Type | |
| Control Type | Rocker Switch |
| Control Location | Front |
| Charcoal Filter | JXCF53 - Included |
| Removable Grease Filter(s) | Yes |
ECONOMICAL / QUIET
| Venting Type | Convertible |
APPEARANCE
| Blower / Light Switch Color | White |
| Material | Metal |
| Color Appearance | Stainless Steel |
WEIGHTS & DIMENSIONS
| Cabinet Width | 24.000000 |
| Net Weight | 15 |
| Overall Depth | 20 |
| Approximate Shipping Weight | 23 |
| Overall Height | 5 1/2 |
| Overall Width | 23 7/8 |
POWER / RATINGS
| Amp Rating at 120V | 2.5 |
ACCESSORIES
| Optional Accessories | JXHC1 - Power Cord Kit |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
CERTIFICATIONS
| Claims & Certifications | ADA Compliant California Prop 65 CEC Regulated |
Range Hood
- BrandGE
- Range Hood TypeUnder Cabinet
- Width (in.)Compact 24"
- Height (in.)5 1/2 in.
- Depth (in.)20 in.
- Venting TypeConvertible
- CertificationsADA Compliant
