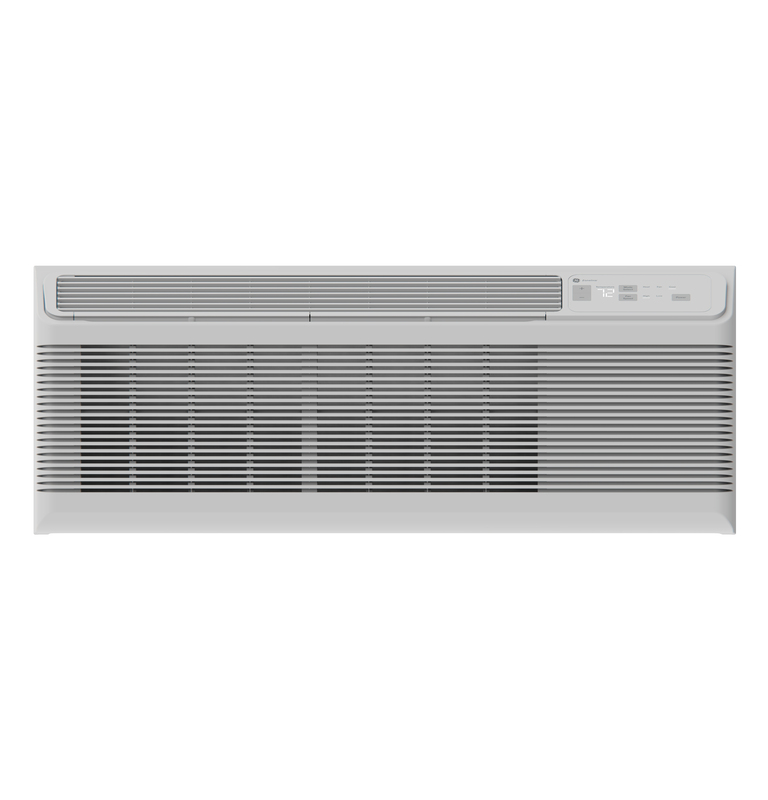

GE Zoneline® AZHS12DRXXA-d Heat Pump Fixed Speed Unit with ICR 12,000 BTU, 230/208 Volt
$1,359.00
Tags:
GE Zoneline® AZHS12DRXXA Heat Pump Fixed Speed Unit with ICR 12,000 BTU, 230/208 Volt
The GE Zoneline® AZHS12DRXXA Heat Pump Fixed Speed Unit offers 12,000 BTUs of efficient heating and cooling, featuring innovative ICR technology for enhanced performance. With 230/208 Volt compatibility, this energy-efficient unit is perfect for year-round comfort in both residential and commercial spaces. Enjoy reliable climate control and eco-friendly operation with this advanced heat pump solution.
Product Details
Features
- R454B - Most environmentally friendly refrigerant on the market
- ICR (Internal condensate removal)
- Heat pump down to 25°F
- Boost heat option
- Electronic touch controls with LED display
CAPACITY
| Cooling BTUH (MAX) | 12100.000000 |
| CFM Indoor Fan Low | 305 |
| CFM Indoor Fan High | 440 |
| Cooling EER (BTUH / Watt) | 11.6/11.6 |
| Dehumidification (pts./hr.) | 3.1 (High Speed) |
| Vent CFM (high fan at zero ESP) | 33 |
| Cooling BTUH (MIN) | 11900 |
FEATURES
| Zoneline Features | "Sleep" Mode "Smart Fan" Fan Cycle Control 3-Stage Heating Design Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Heat Pump with Supplemental Resistance Heat Heat Sentinel Proportional - Integral ID Airflow Quick Heat Recovery Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Reverse Cycle Defrost Universal Heaters Weather Protected Electrical Components |
| Louver Style | Reversible |
| Refrigerant Charge (oz.) | 30.5 |
| Control Type | Standard Microcomputer Tactile touch pad with LED Display |
| Discharge Grille | 2-position |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Sensible Heat Ratio | 62% |
| Power Factor | 98 |
| Refrigerant Type | R454B |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Filter Type | Rigid Frame Slide-Out |
| Manual Vent Control | Hidden |
| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 7-Step |
| Internal Condensate Removal (ICR) | Yes |
| Fan Speed Control | Yes |
| Temperature Range | 60 - 85 F |
| Corrosion Treated | Yes |
| Heat - Cool | Yes |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Central Desk Control Compatibility | Yes |
| Rotary Compressor | Yes |
| Heating - Reverse Cycle - COP | 3.5/3.5 |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Heating System | Heat Pump |
APPEARANCE
| Color Appearance | Grey White |
WEIGHTS & DIMENSIONS
| Overall Width | 42 |
| Approximate Shipping Weight | 116 |
| Overall Height | 16 |
| Overall Depth | 20 13/16 |
| Net Weight | 106 |
POWER / RATINGS
| Cooling - Amperes; L.R. | 29.5 |
| Heating - Reverse Cycle - Watts | 870/850 |
| Cooling - Amperes; F.L. - Cooling | 4.6/4.9 |
| Cooling - Amperes | 4.6/4.9 |
| Cooling - Watts | 1020/1005 |
| Heating - Reverse Cycle - Amps | 3.8/4.1 |
| Voltage (MIN) | 208 |
| Heating BTUH | 11000 / 10900 |
| Voltage (MAX) | 230.000000 |
ACCESSORIES
| Accessories Required for Installation | RAB42 - Wall Case |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
CERTIFICATIONS
| Claims & Certifications | California Prop 65 UL AHRI CUL NRCAN |
