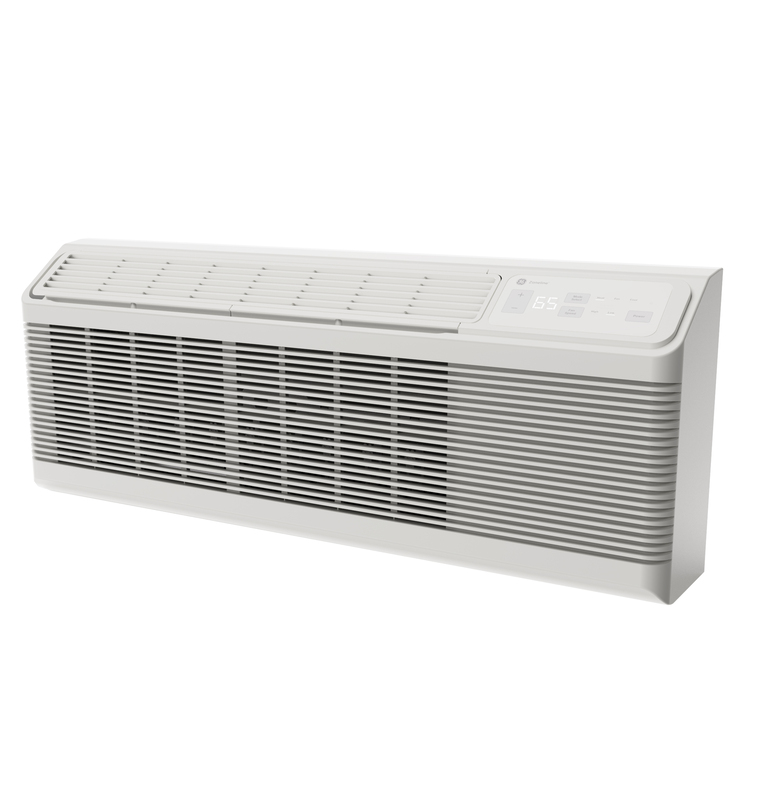

GE Zoneline® AZES12DCXXA-d Cooling and Electric Heat Fixed Speed Unit 12,000 BTU, 230/208 Volt
$1,279.00
Tags:
GE Zoneline® Cooling and Electric Heat Fixed Speed Unit with Corrosion Protection 12,000 BTU, 230/208 Volt
he GE Zoneline® AZES12DCXXA Cooling and Electric Heat Unit offers 12,000 BTUs of reliable cooling and electric heating. Designed with corrosion protection and a fixed-speed motor, this 230/208 Volt unit is perfect for both residential and commercial applications. Enjoy energy-efficient performance and year-round comfort with durable, long-lasting protection against environmental elements.
Product Details
Features
- R454B - Most environmentally friendly refrigerant on the market
- Electronic touch controls with LED display
- Quiet Operation - baked on mastic sound barrier
- Corrosion protection package
- SMC basepan and bulkhead
CAPACITY
| Cooling BTUH (MAX) | 12100.000000 |
| CFM Indoor Fan Low | 275 |
| CFM Indoor Fan High | 410 |
| Cooling EER (BTUH / Watt) | 11.6/11.7 |
| Dehumidification (pts./hr.) | 3.3 (High Speed) |
| Vent CFM (high fan at zero ESP) | 33 |
| Cooling BTUH (MIN) | 12000 |
FEATURES
| Zoneline Features | "Sleep" Mode "Smart Fan" Fan Cycle Control Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Universal Heaters Weather Protected Electrical Components |
| Louver Style | Reversible |
| Control Type | Tactile touch pad with LED Display |
| Refrigerant Charge (oz.) | 32 |
| Discharge Grille | 2-position |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Sensible Heat Ratio | 60% |
| Power Factor | 98 |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R454B |
| Filter Type | Rigid Frame Slide-Out |
| Manual Vent Control | Hidden |
| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 7-Step |
| Fan Speed Control | Yes |
| Temperature Range | 60 - 85 F |
| Corrosion Treated | Yes |
| Heat - Cool | Yes |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Central Desk Control Compatibility | Yes |
| Rotary Compressor | Yes |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Heating System | Electric Resistance |
APPEARANCE
| Color Appearance | Grey White |
WEIGHTS & DIMENSIONS
| Overall Width | 42 |
| Approximate Shipping Weight | 116 |
| Overall Height | 16 |
| Overall Depth | 20 13/16 |
| Net Weight | 106 |
POWER / RATINGS
| Cooling - Amperes; L.R. | 29.5 |
| Cooling - Amperes; F.L. - Cooling | 4.4/4.7 |
| Cooling - Amperes | 4.4/4.7 |
| Cooling - Watts | 985/960 |
| Voltage (MIN) | 208 |
| Heating BTUH | NA |
| Voltage (MAX) | 230.000000 |
ACCESSORIES
| Accessories Required for Installation | RAB42 - Wall Case |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
CERTIFICATIONS
| Claims & Certifications | California Prop 65 UL AHRI CUL NRCAN |
