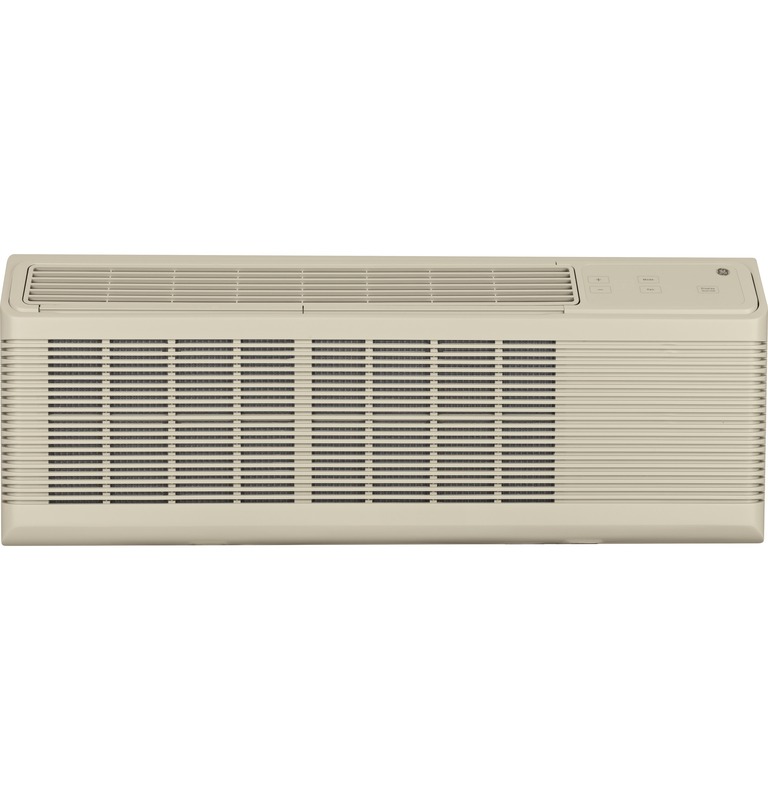

GE Zoneline® AZ65H15DAB-d Heat Pump Unit 15,000 BTU, 230/208 Volt
$1,429.00
Tags:
GE Zoneline® Heat Pump Unit 15,000 BTU, 230/208 Volt
The GE Zoneline® AZ65H15DAB Heat Pump Unit offers 15,000 BTUs of efficient heating and cooling, perfect for large spaces or commercial environments. With 230/208 Volt compatibility, this high-performance heat pump ensures reliable climate control and energy savings year-round. Experience consistent comfort and eco-friendly operation with this versatile unit.
Product Details
Features
- Cooling capacity
14,400/14,200 BTU - Energy efficiency
10.6/10.6 EER - Dehumidification
4.8 pints/hour - Reverse cycle heat
13,400/13,300 BTU - Heat pump efficiency
3.3/3.3 COP
CAPACITY
| Cooling BTUH (MAX) | 14400.000000 |
| CFM Indoor Fan Low | 290 |
| CFM Indoor Fan High | 400 |
| Cooling EER (BTUH / Watt) | 10.6/10.6 |
| Heating - Reverse Cycle - BTUH | 13400/13300 |
| Dehumidification (pts./hr.) | 4.8 |
| Vent CFM (high fan at zero ESP) | 44 |
| Cooling BTUH (MIN) | 14200 |
FEATURES
| Zoneline Features | "Sleep" Mode "Smart Fan" Fan Cycle Control 3-Stage Heating Design Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Heat Pump with Supplemental Resistance Heat Heat Sentinel Proportional - Integral ID Airflow Quick Heat Recovery Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Reverse Cycle Defrost Universal Heaters Weather Protected Electrical Components |
| Louver Style | Reversible |
| Control Type | Standard Microcomputer Tactile touch pad with LED Display |
| Discharge Grille | 2-position |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Sensible Heat Ratio | 60% |
| Power Factor | 97 |
| Refrigerant Type | R410A |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Filter Type | Rigid Frame Slide-Out |
| Manual Vent Control | Hidden |
| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 7-Step |
| Fan Speed Control | Yes |
| Temperature Range | 60 - 85 F |
| Heat - Cool | Yes |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Rotary Compressor | Yes |
| Heating - Reverse Cycle - COP | 3.3/3.3 |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control¶Vent Air Filter¶Outdoor Vent Control - 3 Positions |
| Heating System | Heat Pump |
APPEARANCE
| Color Appearance | Gray |
WEIGHTS & DIMENSIONS
| Overall Width | 42 |
| Approximate Shipping Weight | 110 |
| Overall Height | 16 |
| Overall Depth | 20 13/16 |
| Net Weight | 110 |
POWER / RATINGS
| Cooling - Amperes; L.R. | 31.5 |
| Heating - Reverse Cycle - Watts | 1190/1180 |
| Cooling - Amperes; F.L. - Cooling | 6.1/6.5 |
| Cooling - Amperes | 6.1/6.5 |
| Cooling - Watts | 1355/1335 |
| Heating - Reverse Cycle - Amps | 5.2/5.6 |
| Voltage (MIN) | 208 |
| Voltage (MAX) | 230.000000 |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
CERTIFICATIONS
| Claims & Certifications | California Prop 65 |
