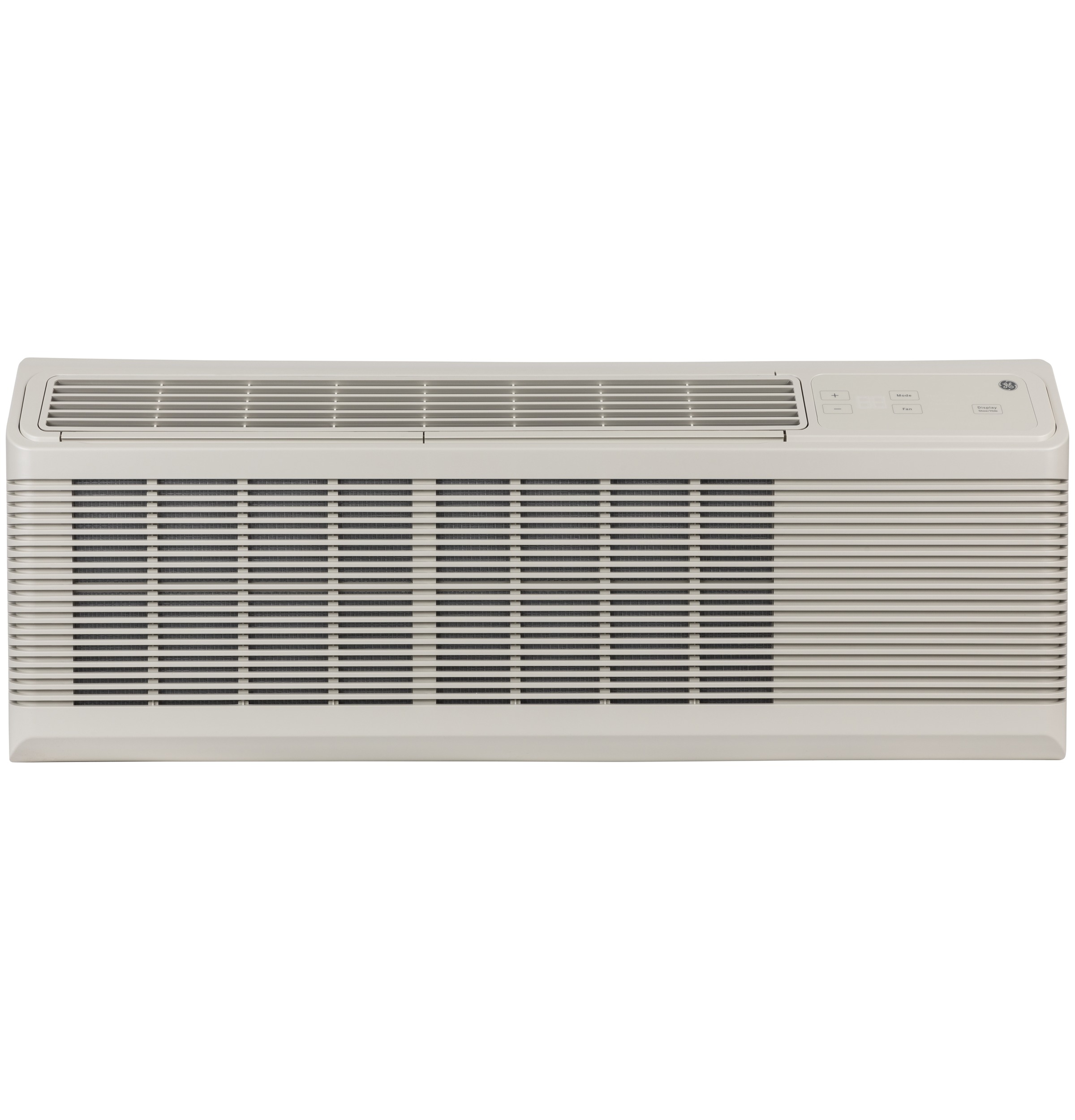

GE Zoneline® AZ45E12DAB-d Cooling and Electric Heat Unit 12,000 BTU, 230/208 Volt
$829.00
Tags:
GE Zoneline® Cooling and Electric Heat Unit 12,000 BTU, 230/208 Volt
The GE Zoneline® AZ45E12DAB provides 12,000 BTUs of efficient cooling and electric heating, perfect for year-round comfort. With 230/208 Volt compatibility, this versatile unit is ideal for both residential and commercial spaces, offering reliable performance and energy savings for optimal climate control in any season.
Product Details
Features
- Cooling capacity
11,600/11,500 BTU - Energy efficiency
11.7/11.8 EER - Dehumidification
3.5 pints/hour - Indoor fan CFM (high/low)
449/270 - Fresh air vent CFM (fully open high fan)
42
- Cooling capacity
11,600/11,500 BTU - Energy efficiency
11.7/11.8 EER - Dehumidification
3.5 pints/hour - Indoor fan CFM (high/low)
449/270 - Fresh air vent CFM (fully open high fan)
42
CAPACITY
Cooling BTUH (MAX) 11600.000000
CFM Indoor Fan Low 290
CFM Indoor Fan High 420
Cooling EER (BTUH / Watt) 11.7/11.8
Dehumidification (pts./hr.) 3.5
Vent CFM (high fan at zero ESP) 38
Cooling BTUH (MIN) 11500
| Cooling BTUH (MAX) | 11600.000000 |
| CFM Indoor Fan Low | 290 |
| CFM Indoor Fan High | 420 |
| Cooling EER (BTUH / Watt) | 11.7/11.8 |
| Dehumidification (pts./hr.) | 3.5 |
| Vent CFM (high fan at zero ESP) | 38 |
| Cooling BTUH (MIN) | 11500 |
FEATURES
Zoneline Features "Sleep" Mode
"Smart Fan" Fan Cycle Control
Auto Power Recovery
Automatic Indoor Frost Control
Central Desk Control Compatibility
Freeze Sentinel
Heat Sentinel
Proportional - Integral ID Airflow

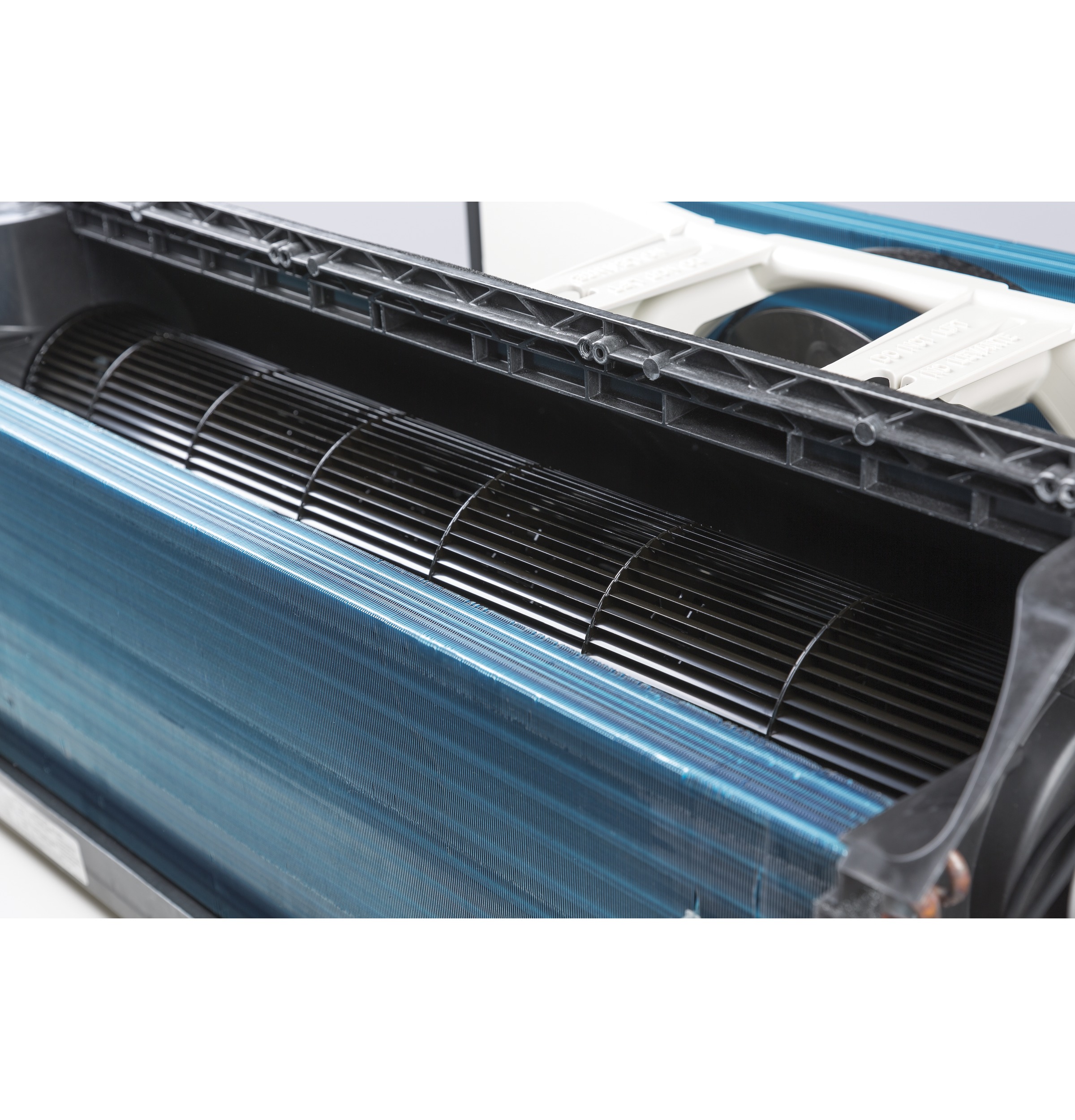

Random Twist/Length Segment Tangential Blower
Remote Thermostat Compatibility
Universal Heaters
Weather Protected Electrical Components
Louver Style Reversible

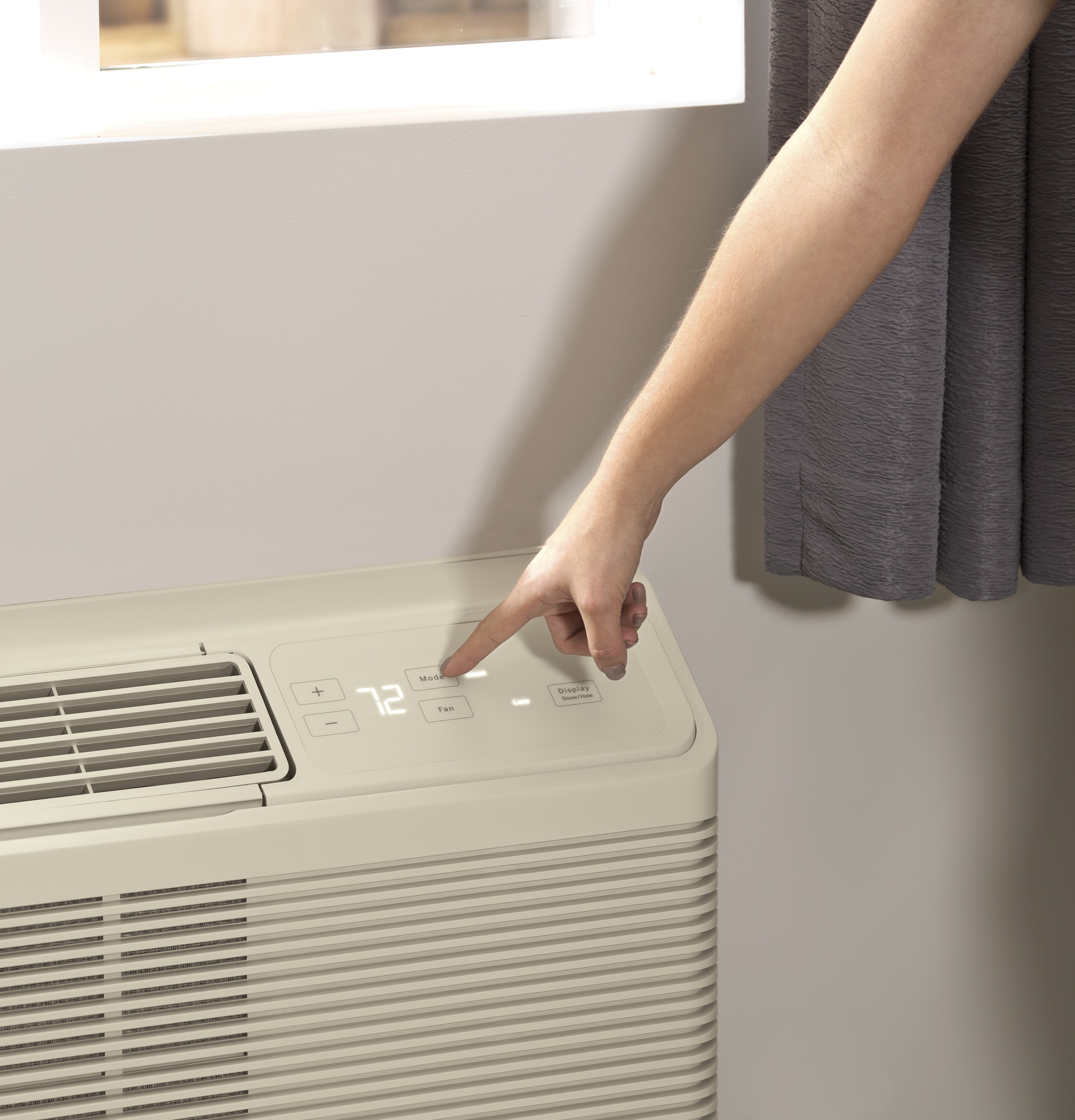

Control Type Coverless Backlit White LED Touch Controls
Discharge Grille 2-position
Fan Speed Selections Hi/Low Cooling
Hi/Low Fan Only
Hi/Low Heating
Sensible Heat Ratio 62%
Power Factor 98
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type R410A
Filter Type Rigid Frame
Slide-Out
Manual Vent Control Hidden
Chassis Type Slide-In
Fan Motor 2
Temperature Limiting Electronic 7-Step
Fan Speed Control Yes
Temperature Range 60 - 85 F
Heat - Cool Yes
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Rotary Compressor Yes
Vent Control 3-position
Venting Features Concealed Manual Vent Control¶Vent Air Filter¶Outdoor Vent Control - 3 Positions
Heating System Electric Resistance
| Zoneline Features | "Sleep" Mode "Smart Fan" Fan Cycle Control Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Universal Heaters Weather Protected Electrical Components |
| Louver Style | Reversible |
| Control Type | Coverless Backlit White LED Touch Controls |
| Discharge Grille | 2-position |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Sensible Heat Ratio | 62% |
| Power Factor | 98 |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Filter Type | Rigid Frame Slide-Out |
| Manual Vent Control | Hidden |
| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 7-Step |
| Fan Speed Control | Yes |
| Temperature Range | 60 - 85 F |
| Heat - Cool | Yes |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Rotary Compressor | Yes |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control¶Vent Air Filter¶Outdoor Vent Control - 3 Positions |
| Heating System | Electric Resistance |
APPEARANCE
Color Appearance Gray
| Color Appearance | Gray |
WEIGHTS & DIMENSIONS
Overall Width 42 Approximate Shipping Weight 110
Overall Height 16 Overall Depth 20 13/16 Net Weight 110
| Overall Width | 42 |
| Approximate Shipping Weight | 110 |
| Overall Height | 16 |
| Overall Depth | 20 13/16 |
| Net Weight | 110 |
POWER / RATINGS
Cooling - Amperes; L.R. 29.5
Cooling - Amperes; F.L. - Cooling 4.7/5.0
Cooling - Amperes 4.7/5.0
Cooling - Watts 990/970
Voltage (MIN) 208
Voltage (MAX) 230.000000
| Cooling - Amperes; L.R. | 29.5 |
| Cooling - Amperes; F.L. - Cooling | 4.7/5.0 |
| Cooling - Amperes | 4.7/5.0 |
| Cooling - Watts | 990/970 |
| Voltage (MIN) | 208 |
| Voltage (MAX) | 230.000000 |
WARRANTY
Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
CERTIFICATIONS
Claims & Certifications CUL
UL
AHRI
NRCAN
California Prop 65
| Claims & Certifications | CUL UL AHRI NRCAN California Prop 65 |
