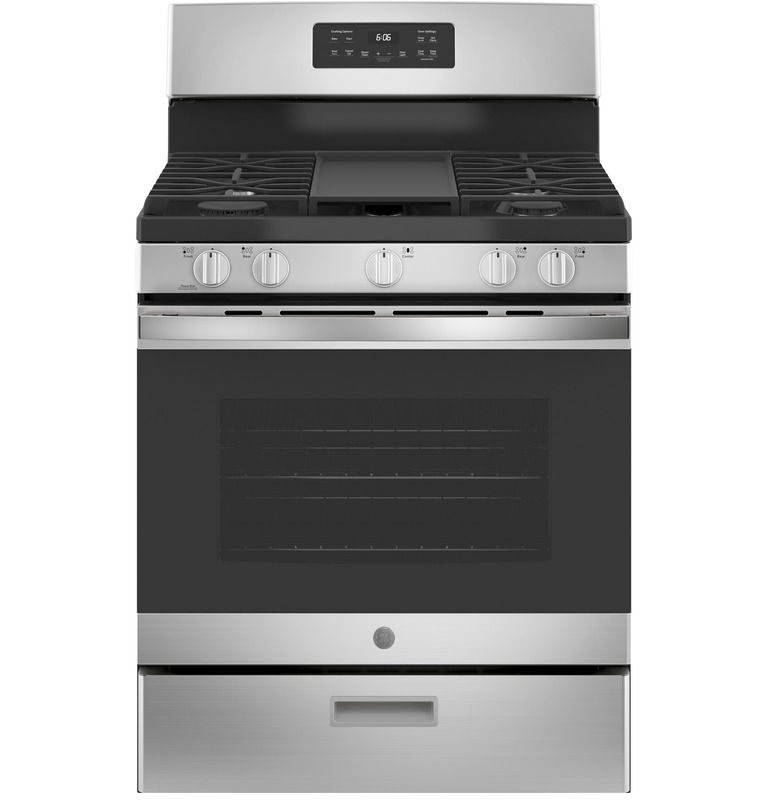

GE® JGBS66REKSS 30" Free-Standing Gas Range

Features
- Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner - Extra-large integrated griddle
Cook up to six grilled cheeses at once on the industry’s largest integrated griddle - 15,000 BTU Power Boil Burner
Delivers high heat for fast boiling - Center oval burner
Large oval fifth burner is ideal for griddle cooking - Steam clean
Save time and effort by steam-cleaning the oven after cooking. No special water, kits or extra steps required.
CAPACITY
Total Capacity (cubic feet) | 5.00 |
FEATURES
Ignition System | Electronic |
Burner - Right Rear | 12,000 BTU |
Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Delay Bake Option Electronic Clock and Timer Hi / Low Broil Oven Control Lock Capability |
Oven Rack Features | 2 Flat Nickel Racks |
Burner - Left Rear | 5,000 BTU Precise Simmer |
Oven Cleaning Type | Steam Clean |
Griddle | Integrated (Included) |
Product Type | Free-Standing Single Oven |
Cooktop Type | Continuous Grates with Griddle |
Cooktop Burner Grate Material | Heavy Cast Iron |
Fuel Type | Natural Gas |
Burner - Center | 10,000 BTU Oval |
Interior Oven Light | 1 Incandescent |
Control Location | Front |
Cooktop Burner Grate Features | Continuous Grates |
Control Type | Electronic Touch |
Burner - Left Front | 15,000 BTU |
Drawer Type | Broiler |
Sabbath Mode | Yes |
Cooking Technology | Traditional |
Configuration | Range with Broiler Drawer |
OU Certified | Embedded OU/CRC Enhanced Shabbos Mode |
Cooktop Burner Type | Sealed |
Burner - Right Front | 9,500 BTU |
Cooktop Surface | Black Edge-to-Edge One-Piece Upswept Porcelain-Enamel |
Oven Rack Positions (Single or Upper/Lower) | 6 |
APPEARANCE
Cooktop Burner Grate Color | Matte Black |
Handle | Designer Style |
Oven Door Features | Big View Oven Window |
Handle Color | Stainless Steel |
Control Knobs | Stainless Steel Appearance |
Color Appearance | Stainless Steel/Black |
WEIGHTS & DIMENSIONS
Net Weight | 150 |
Depth Without Handle | 26.25 |
Height to Cooking Surface (in.) | 36 - 36 1/2 |
Cabinet Width | 30.000000 |
Approximate Shipping Weight | 172 |
Overall Width | 30 |
Overall Height | 47 1/4 |
Overall Depth | 28 3/4 |
Depth with Door Open | 46.25 |
Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0 |
Volts/Hertz/Amps | 120v; 60Hz; 15A |
Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0 |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.0 Broiler |
ACCESSORIES
Center Grate | Optional - JXGRATE1 |
Griddle Accessory | Integrated Griddle (Included) |
LP Conversion Kit | Included |
WARRANTY
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
CERTIFICATIONS
Claims & Certifications | California Prop 65 OU Certified Sabbath Mode View Chemical Content Reports |
Range
- BrandGE
- Fuel TypeGas
- StyleFree-Standing
- Height (in.)47-48 in.
- Width (in.)30 in.
- Depth (in.)28-29 in.
- Burner TypeGrate
- Cleaning TypeStandard Cleaning
- # of Burners5-Burners
- Oven CookingTraditional
- CertificationsNone
