GE® JGBS66DEKWW 30" Free-Standing Gas Range
$799.00
Tags:
Model # JGBS66DEKWW
GE® JGBS66DEKBB 30" Free-Standing Gas Range

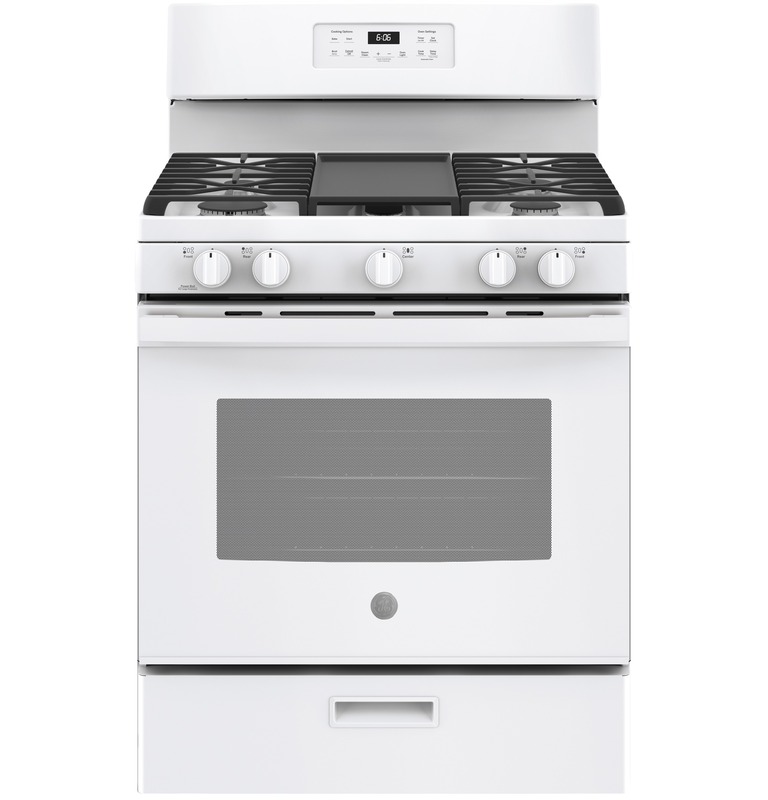

The GE® JGBS66DEKWW 30" Free-Standing Gas Range combines classic style with modern functionality. Finished in a clean white color, this gas range features a spacious 5.0 cu. ft. oven, an edge-to-edge cooktop, and an integrated non-stick griddle for versatile cooking. Sealed burners provide easy cleanup, while precise simmer control ensures perfect cooking results every time.
Product Details
Specifications
Features
- Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner - Extra-large integrated griddle
Cook up to six grilled cheeses at once on the industry’s largest integrated griddle - 15,000 BTU Power Boil Burner
Delivers high heat for fast boiling - Center oval burner
Large oval fifth burner is ideal for griddle cooking - Steam clean
Save time and effort by steam-cleaning the oven after cooking. No special water, kits or extra steps required.
CAPACITY
Total Capacity (cubic feet) 5.00
| Total Capacity (cubic feet) | 5.00 |
FEATURES
Ignition System Electronic
Burner - Right Rear 12,000 BTU
Oven Control Features Audible Preheat Signal
Auto Oven Shut-Off
Delay Bake Option
Electronic Clock and Timer
Hi / Low Broil
Oven Control Lock Capability
Oven Rack Features 2 Flat Nickel Racks
Burner - Left Rear 5,000 BTU Precise Simmer
Oven Cleaning Type Steam Clean
Griddle Integrated (Included)
Product Type Free-Standing Single Oven
Cooktop Type Continuous Grates with Griddle
Cooktop Burner Grate Material Heavy Cast Iron
Fuel Type Natural Gas
Burner - Center 10,000 BTU Oval
Interior Oven Light 1 Incandescent
Control Location Front
Cooktop Burner Grate Features Continuous Grates
Control Type Electronic Touch
Burner - Left Front 15,000 BTU
Drawer Type Broiler
Sabbath Mode Yes
Cooking Technology Traditional
Configuration Range with Broiler Drawer
OU Certified Embedded OU/CRC Enhanced Shabbos Mode
Cooktop Burner Type Sealed
Burner - Right Front 9,500 BTU
Cooktop Surface Edge-to-Edge
One-Piece Upswept
Porcelain-Enamel
White
Oven Rack Positions (Single or Upper/Lower) 6
| Ignition System | Electronic |
| Burner - Right Rear | 12,000 BTU |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Delay Bake Option Electronic Clock and Timer Hi / Low Broil Oven Control Lock Capability |
| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Steam Clean |
| Griddle | Integrated (Included) |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates with Griddle |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 10,000 BTU Oval |
| Interior Oven Light | 1 Incandescent |
| Control Location | Front |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 15,000 BTU |
| Drawer Type | Broiler |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional |
| Configuration | Range with Broiler Drawer |
| OU Certified | Embedded OU/CRC Enhanced Shabbos Mode |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 9,500 BTU |
| Cooktop Surface | Edge-to-Edge One-Piece Upswept Porcelain-Enamel White |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
APPEARANCE
Cooktop Burner Grate Color Matte Black
Handle Designer Style
Oven Door Features Big View Oven Window
Control Knobs Gloss White
Color Appearance White
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Gloss White |
| Color Appearance | White |
WEIGHTS & DIMENSIONS
Net Weight 150
Depth Without Handle 26.25
Height to Cooking Surface (in.) 36 - 36 1/2
Cabinet Width 30.000000
Approximate Shipping Weight 172
Overall Width 30 Overall Height 47 1/4 Overall Depth 28 3/4 Depth with Door Open 46.25
Oven Interior Dimensions (W x H x D) (in.) 24 x 19 x 19
| Net Weight | 150 |
| Depth Without Handle | 26.25 |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Cabinet Width | 30.000000 |
| Approximate Shipping Weight | 172 |
| Overall Width | 30 |
| Overall Height | 47 1/4 |
| Overall Depth | 28 3/4 |
| Depth with Door Open | 46.25 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000's BTU's) (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0
Volts/Hertz/Amps 120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's) (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 18.0 Bake / 18.0 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's) 16.0 Bake / 16.0 Broiler
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.0 Broiler |
ACCESSORIES
Center Grate Optional - JXGRATE1
Griddle Accessory Integrated Griddle (Included)
LP Conversion Kit Included
| Center Grate | Optional - JXGRATE1 |
| Griddle Accessory | Integrated Griddle (Included) |
| LP Conversion Kit | Included |
WARRANTY
Parts Warranty Limited 1-year entire appliance
Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CERTIFICATIONS
Claims & Certifications California Prop 65
OU Certified Sabbath Mode
View Chemical Content Reports
| Claims & Certifications | California Prop 65 OU Certified Sabbath Mode View Chemical Content Reports |
Range
- BrandGE
- Fuel TypeGas
- StyleFree-Standing
- Height (in.)47-48 in.
- Width (in.)30 in.
- Depth (in.)28-29 in.
- Burner TypeGrate
- Cleaning TypeStandard Cleaning
- # of Burners5-Burners
- Oven CookingTraditional
- CertificationsNone
