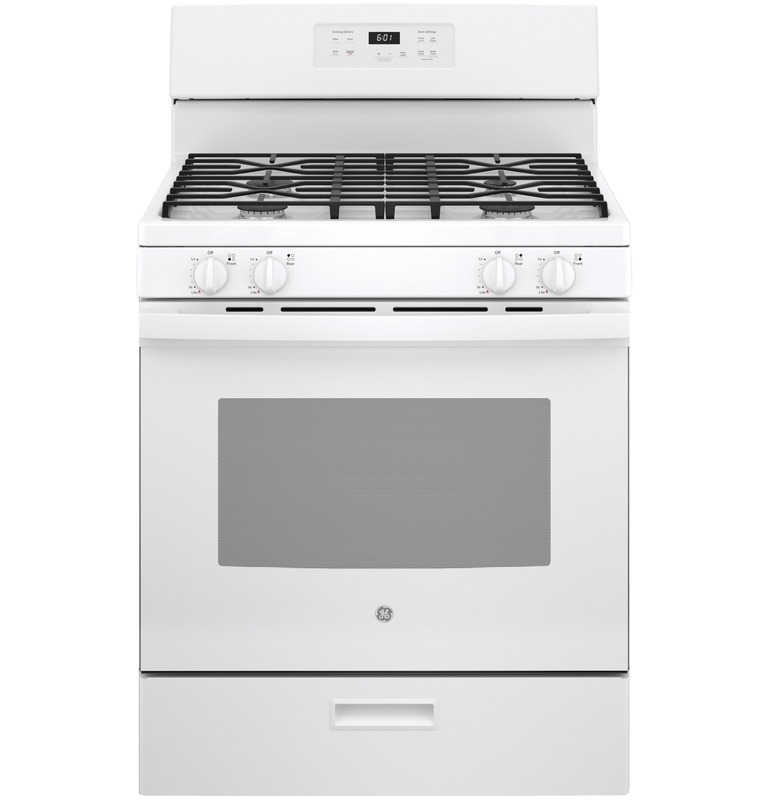

GE® JGBS61DPWW 30" Free-Standing Gas Range

Features
- Continuous grates
Continuous grates give you a large cooking space and can handle any cookware - 13,000-BTU burner
A powerful cooktop burner offers a wide range of temperature options for any cooking need - Precise simmer burner
This burner setting provides low, even heat so delicate dishes don't burn - Sealed cooktop burners
Sealed cooktop burners contain cooking spills so cleanup is quick and easy - Black matte steel grates
The steel grates are coated with a durable, matte finish for a long-lasting and high end look
CAPACITY
| Total Capacity (cubic feet) | 4.80 |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Certified Sabbath Mode Delay Bake Option Electronic Clock and Timer Hi / Low Broil Oven Control Lock Capability |
| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Standard Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Heavy Steel |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | 1 Incandescent |
| Control Location | Front |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 9,500 BTU |
| Drawer Type | Broiler |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional |
| Configuration | Range with Broiler Drawer |
| OU Certified | Embedded OU/CRC Enhanced Shabbos Mode |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 13,000 BTU |
| Cooktop Surface | One-Piece Upswept Porcelain-Enamel White |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Gloss White |
| Color Appearance | White |
WEIGHTS & DIMENSIONS
| Net Weight | 150 |
| Depth Without Handle | 26.25 |
| Height to Cooking Surface (in.) | 36 - 36 1/4 |
| Cabinet Width | 30.000000 |
| Approximate Shipping Weight | 170 |
| Overall Width | 30 |
| Overall Height | 46 1/4 |
| Overall Depth | 28 3/4 |
| Depth with Door Open | 46.25 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 13.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.0 Broiler |
ACCESSORIES
| LP Conversion Kit | Included |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CERTIFICATIONS
| Claims & Certifications | California Prop 65 OU Certified Sabbath Mode View Chemical Content Reports |
Range
- BrandGE
- Fuel TypeGas
- StyleFree-Standing
- Height (in.)47-48 in.
- Width (in.)30 in.
- Depth (in.)28-29 in.
- Burner TypeGrate
- Cleaning TypeStandard Cleaning
- # of Burners4-Burners
- Oven CookingTraditional
- CertificationsNone
