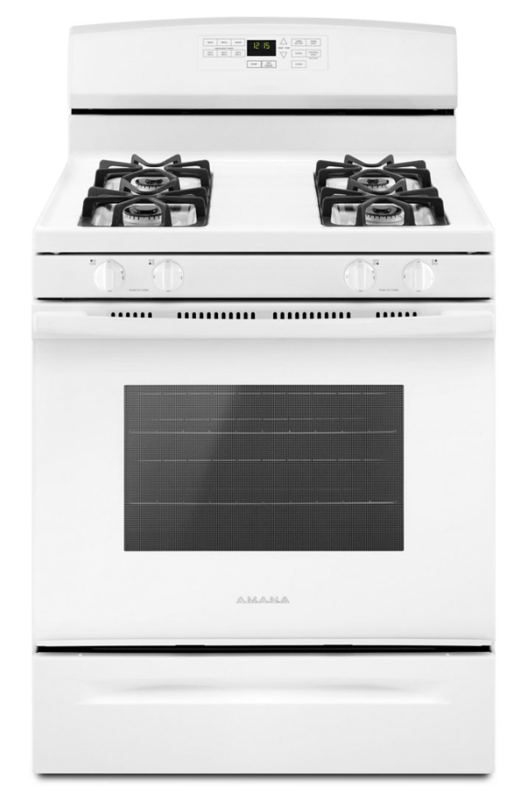

Amana® AGR6603SFW 30" Gas Range with Self-Clean Option

- Large Oven Capacity
- Versatile Cooktop
- Bake Assist Temps
- Easy Touch Electronic Controls Plus
- Temp Assure™ Cooking System
CAPACITY | |
Total Capacity (cubic feet) | 5 |
FEATURES | |
Cooking System | Traditional |
Storage Drawer Features | Removable Full-Width |
Oven Interior | 1 Incandescent Light |
Oven Control Features | Clock, Warm Hold, Timer, Audible Signal, Control Lock, Sabbath Mode |
Lift-Up Cooktop With Support Rods | No |
Oven Rack Features | 2 Oven Racks |
Oven Rack Positions (Single or Upper/Lower) | 5 |
Oven Cleaning Type | Self-Clean |
Product Type | Free-Standing Single Oven |
Heating Element "ON" Indicator Light | No |
Cooktop Type | Porcelain Coated Steel |
Fuel Type | Natural Gas |
Control Location | Backsplash |
Control Type | Digital Temperature Display |
Electronic | |
Touchpads | |
Drawer Type | Storage |
Sabbath Mode | Yes |
Cooking Technology | Traditional |
Configuration | Range with Storage Drawer |
Oven Features | |
Removable One-Piece Drip Bowls | None |
OU Certified | No |
Cooktop Burner Type | Porcelain Coated Steel |
Cooktop Surface | Porcelain Coated Cast Grates |
Left Front Burner Power/Size | 12500 BTU |
Left Rear Burner Power/Size | 9500 BTU |
Right Front Burner Power/Size | 9500 BTU |
Right Rear Burner Power/Size | 5000 BTU |
APPEARANCE | |
Handle | Towel bar |
Textured Steel Side Panels | Yes |
Oven Door Features | Big View Oven Window |
Glass Door | |
Handle Color | White, Black, Stainless Steel |
Control Knobs | White, Black |
Color Appearance | White, Black, Stainless Steel |
WEIGHTS & DIMENSIONS | |
Net Weight | 195 |
Depth Without Handle | 25 1/3 |
Height to Cooking Surface (in.) | 46 7/8 |
Cabinet Width | 29 7/8 |
Approximate Shipping Weight | 187 |
Overall Width | 29 7/8 |
Overall Height | 46 7/8 |
Overall Depth | 27 3/4 |
Depth with Door Open | 46 2/3 |
Oven Interior Dimensions (W x H x D) (in.) | 24-1/2 x 18-1/8 x 27-3/4 |
POWER / RATINGS | |
Electrical Requirements | 120V/60Hz/15A |
Broiler Wattage | 10000 BTU |
Bake Element Power | 16500 BTU |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
CERTIFICATIONS | |
Claims & Certifications | |
UL | |
California Prop 65 | |
View Chemical Content Reports |
Range
- BrandAmana
- Fuel TypeGas
- StyleFree-Standing
- Height (in.)47-48 in.
- Width (in.)30 in.
- Depth (in.)27-28 in.
- Burner TypeGrate
- Cleaning TypeSelf-Cleaning
- # of Burners4-Burners
- Oven CookingTraditional
- CertificationsNone
