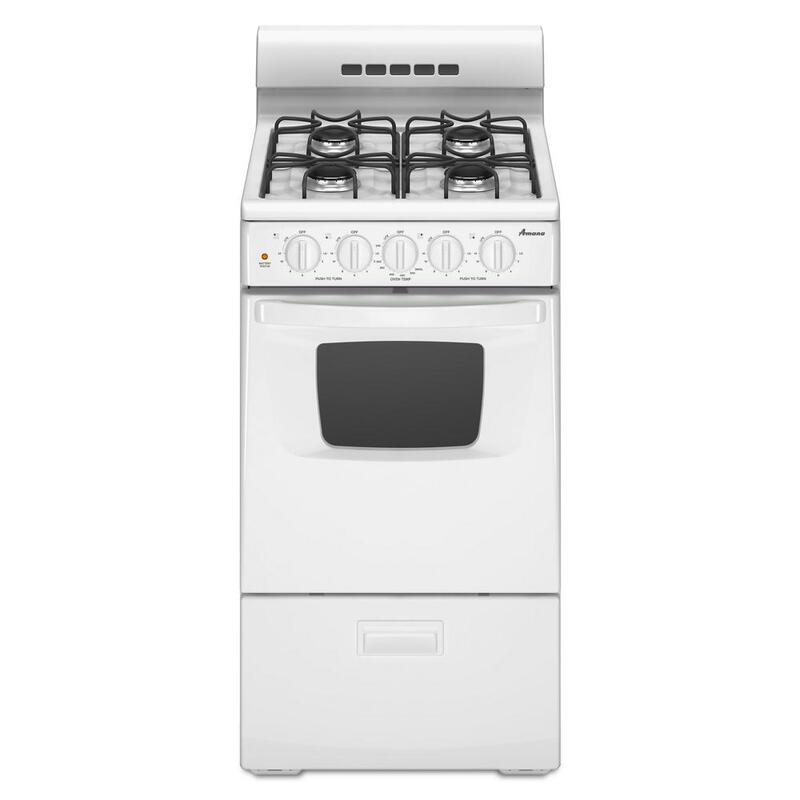

Amana® AGG222VDW 20" Gas Range with Compact Oven Capacity

- Compact Oven Capacity
- Versatile Cooktop
- Temp Assure™ Cooking System
- SpillSaver™ Upswept Cooktop
- Sealed Burners
CAPACITY | |
Total Capacity (cubic feet) | 2.6 |
FEATURES | |
Oven Control Features | Oven "ON" Light |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 9,500 BTU |
| Oven Cleaning Type | Standard Clean |
| Product Type | Free-Standing Single Oven |
| Heating Element "ON" Indicator Light | Oven "ON" Light |
| Cooktop Type | Cast Iron Grates, Gloss Finish |
| Fuel Type | Natural Gas |
| Element - Right Front | 7,000 BTU |
| Control Location | Front |
| Control Type | Rotary knobs |
| Sabbath Mode | No |
| Leveling System | Easy Level System |
| Element - Left Rear | 7,000 BTU |
| Cooking Technology | Traditional |
| Oven Features | 4-Pass Bake Element |
| 4-Pass Broil Element | |
| Burner Type | Sealed Burner |
| OU Certified | No |
| Oven Cooking Modes | Bake |
| Broil | |
| Cooktop Burner Type | Coil |
| Element - Right Rear | 9,500 BTU |
| Cooktop Surface | |
| Porcelain-Enamel | |
| Oven Rack Positions (Single or Upper/Lower) | 5 |
APPEARANCE | |
Textured Steel Side Panels | Yes |
| Handle Color | White |
| Control Knobs | White |
| Door Swing | Pull-Down |
| Color Appearance | White |
WEIGHTS & DIMENSIONS | |
Net Weight | 114 |
| Depth Without Handle | 24 1/2 |
| Height to Cooking Surface (in.) | 42 |
| Cutout Width (in.) | 20 1/8 |
| Approximate Shipping Weight | 125 |
| Overall Width | 19 3/4 |
| Overall Height | 42 |
| Overall Depth | 26 1/4 |
| Depth with Door Open | 42 1/8 |
| Oven Interior Dimensions (W x H x D) (in.) | 18-1/2 x 16 x 15-3/5 |
POWER / RATINGS | |
Electrical Requirements | 120V ; 15A |
| Broiler Element Power | 12,700 BTU |
| Bake Element Power | 12,700 BTU |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CERTIFICATIONS | |
Claims & Certifications | |
| ADA Compliant | |
| California Prop 65 | |
| View Chemical Content Reports |
Range
- BrandAmana
- Fuel TypeGas
- StyleFree-Standing
- Height (in.)Less than 37 in.
- Width (in.)20 in.
- Depth (in.)Less than 27 in.
- Burner TypeGrate
- Cleaning TypeStandard Cleaning
- # of Burners4-Burners
- Oven CookingTraditional
- CertificationsADA Compliant
